Products Description
PS19C Compact Size Pressure Sensor is a new range of sensor that benefit from smaller capsule dimensions (Φ12.6mm) and crevice free diaphragms. It uses a high-sensitivity piezoresistive silicon die as sensing component, which is protected against ambient influences by SS316 housing sealed with a concentrically corrugated diaphragm. Inside the housing, the filled silicone oil assures the measured pressure can be transmitted onto silicon die and then transform the pressure to electric signal.
Available the ranges from 200Kpa to 100Mpa.
Applications
● Industrial process control systems
● Level measurement
● Liquid pressure system and switch
● Refrigeration equipment and HVAC controls
● Hydraulic systems and valve
● Ship and marine systems
Product Features
● Pressure range 0-200Kpa-100MPa)
● Gauge, Absolute, Sealed gauge
● Diameter: 12.6mm
● Constant Current: 1.5mA
● Current power supply: 1.5mA
● Isolated construction, measure various media
● Full Stainless Steel 316
● Wide temperature compensation -10℃～80℃
● Long-term stability ±0.1%FS/year
Product Specification
| Model | Range | Diameter | Type | Accuracy/FS | Input | Output |
| Series 1 | 0-2bar-1000bar | 12.6mm | G/A/S | 0.1%-0.2% | 1.5mA | ≤150mV |
Series 2 | 0-1500bar | 15mm | G/A/S | 0.1%-0.2% | 5V | ≤150mV |
| Series 3 | 0-0.07bar | 19mm | G | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 4 | -1bar-0.1bar-1000bar | 19mm | G/A/S | 0.1%-0.2% | 1.5mA/3.3V/5V/10V | ≤150mV |
| Series 5 | -1bar-0.1bar-1000bar | 19mm | G/A | 0.3%-0.5% | 3.3V | ≤150mV |
| Series 6 | 0.1bar-30bar(Pressure) | 19mm | G/A/S | 0.25% | 1.5mA/5V/10V | ≤150mV |
| -104'℉-185'℉ | 0.50% | |||||
| Series 7 | -1bar-0.1bar-1000bar | 19mm | G/A/S | 0.20% | 10-30V | 0.5-4.5V/4-20mA |
| Series 8 | 0-0.35bar-35bar | 19mm | D | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 9 | -1bar-0.1bar-1000bar | 28mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series10 | -1bar-100bar | 19mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series11 | 0-5bar-100bar | 29.5mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series12 | -1bar-0.1bar-35bar | 19mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series13 | 0-0.35bar-60bar | 50mm | G/A/S | 0.20% | 1.5mA/5V/10V | ≤150mV |
| Series14 | 0-100pa-400bar | 35mm | G/A/S/D | 0.1%-0.2% | 10-30V | 4-20mA/HART |
| Series15 | 0-2bar-2200bar | 19mm | G/A/S | 0.05%-0.075% | 1.5mA/5V/10V | ≤150mV |
| Measuring Range & Output | ||||
|---|---|---|---|---|
| Range | Overload Pressure | Output/F.S (mV) | Typical Value(mV) | Pressure Type |
| 0~200 kPa | 300% | 65～85 | 75 | G/A |
| 0~400 kPa | 300% | 60～80 | 70 | G/A |
| 0~1.0 MPa | 200% | 80～120 | 100 | G/A |
| 0~2.0 MPa | 200% | 50～70 | 60 | G/A |
| 0~3.5 MPa | 200% | 100～120 | 110 | G/S/A |
| 0~7.0 MPa | 200% | 120～150 | 135 | S/A |
| 0~10 MPa | 200% | 180～230 | 200 | S/A |
| 0~25 MPa | 150% | 140～170 | 150 | S/A |
| 0~40 MPa | 150% | 230～280 | 250 | S/A |
| 0~60 MPa | 150% | 100～160 | 130 | S/A |
| 0~100 MPa | 150% | 100～150 | 120 | S/A |
| Notes: G for Gauge pressure; A for Absolute pressure; D for Differential pressure; S for Sealed gauge. | ||||
| Technical Parameters - Range 0-1Mpa-100Mpa | |||
|---|---|---|---|
| Parameters | Typ. | Max. | Unit |
| Nonlinearity | 0.2 | 0.5 | %FS |
| Hysteresis | 0.05 | 0.08 | %FS |
| Repeatability | 0.05 | 0.08 | %FS |
| Zero Output | ±1 | ±2 | mV DC |
| FS output | 100 | 250 | mV DC |
| Input/ Output Impedance | 2.6 | 5.0 | kΩ |
| Zero Temperature Drift* | ±0.4 | ±1.0 | %FS,@25℃ |
| Sensitivity Temperature Drift* | ±0.4 | ±1.0 | %FS,@25℃ |
| Long-term Stability | 0.2 | 0.3 | %FS/year |
| Construction Performance | |
|---|---|
| Diaphragm | Stainless Steel 316L |
| Housing | Stainless Steel 316L |
| Pressure leading tube | Stainless Steel 316L |
| O Ring | Φ12*1.8mm(nitrile rubber or viton) |
| Measuring Medium | Which is compatible with SS316L, viton, nitrile rubber |
| Packing Medium | Silicon Oil |
| Net weight | 20g |
| Electric & Environment Performance | |
|---|---|
| Power supply | ≤3.0mA; DC≤10V DC |
| Insulation Resistance | 500MΩ@100VDC |
| Overpressure | 1.5~3 times FS |
| Vibration(20~2000Hz) | 10gRMS |
| Useful Time(25℃) | >1*100 Million Times @Pressure Circulation(80%FS) |
| Response Time(10%~90%) | ≤1ms |
| Storage Temp. | -40~+125℃ |
| Operating Temp. | -40~+85℃ |
| Compensation Temp. | 0~50℃; -10~80℃ |
| Input resistance | 2.7kΩ～5kΩ |
| Output resistance | 3.0kΩ～6kΩ |

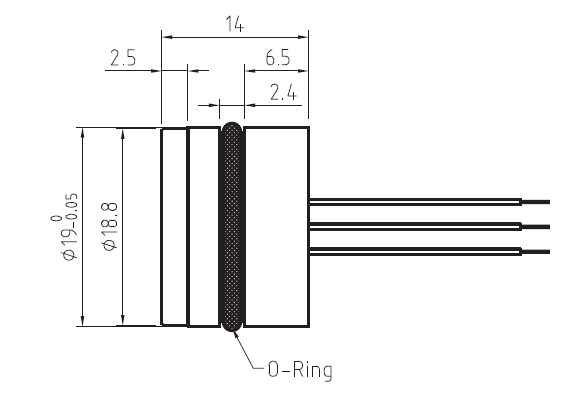

Product Dimensions
