Products Description

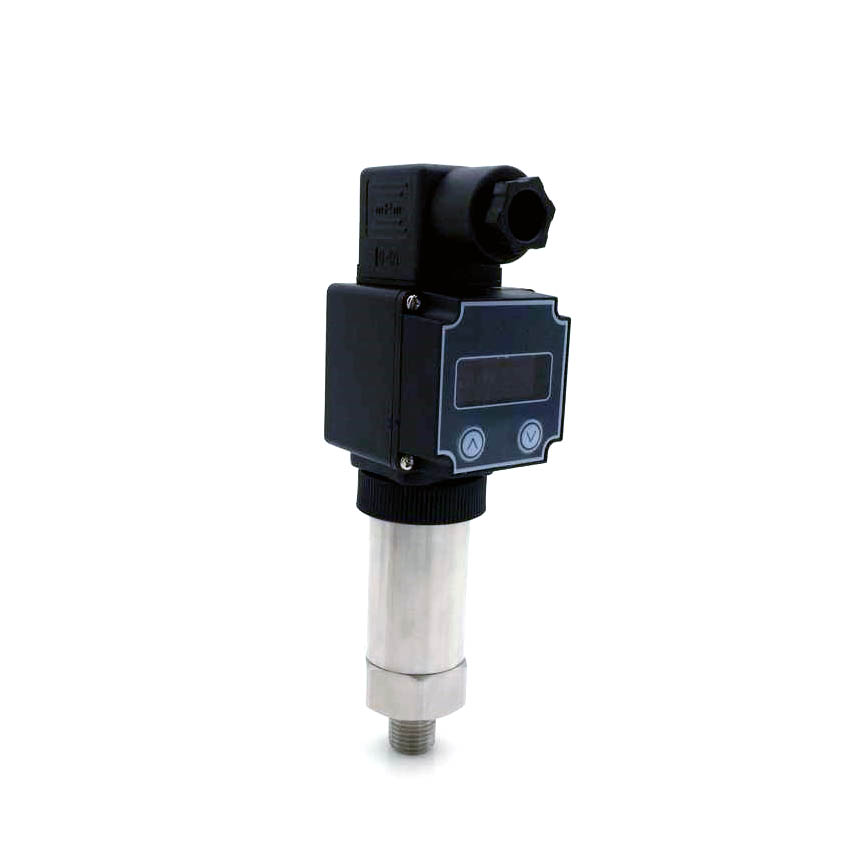

Digital Smart with LED/LCD display Industrial Pressure Transmitter
Digital Smart with LED/LCD display Industrial Pressure Transmitter with Piezo pressure sensor is a standard and most popular transmitter applied in air and liquid pressure measuing with LED/LCD display.
Digital Smart with LED/LCD display Industrial Pressure Transmitter are made of stainless steel. the pressure sensing elements chips are selected from well-known international brands. Special circuits are adopted to zero and full range conveniently. LED-PT205 4-20mA pressure sensor are approved with CE, intrinsically safe, and explosion proof certificates. Customized structures and output formats can be designed according to special application requirements .
Feature
● With LED/LCD display
● Imported silicon sensor chip employed
● Perfect long term stability
● CE certificate
● OEM service provided
● Sillicon sensor cell employed
Applications
● Industrial process control
● Energy and water treatment
● Liquid pressure system and switch
● Pipeline pressure testing
Product Features
● With LED/LCD display
● Imported
silicon sensor chip employed
● Perfect
long term stability
● CE
certificate
● OEM
service provided
●
Sillicon sensor cell employed
Product Specification
|
pressure medium |
gas liquid compatible stainless steel |
|
pressure ranges |
0~2...1000bar |
|
overload pressure |
150%FS |
|
output signal |
4~20mA, 0~5V, 0~10V, 1~5V |
|
accuracy |
0.5%FS (standard) |
|
load resistance |
RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output) |
|
long term stability |
<0.25%FS/year |
|
supply voltage |
10~30V |
|
compensated temperature range |
-10~70°c |
|
operating temperature range |
-40~+120°c |
|
storage temperature range |
-40~+120°c |
|
temperature coefficient of zero |
0.3%FS/10°c |
|
temperature coefficient of span |
0.3%FS/10°c |
|
insulation resistance |
100MΩ@ 50VDC |
|
process connection |
G1/4 or others |
|
electrical connection |
DIN 43650 or others |
|
material of wetted part |
1Cr18Ni9Ti |
|
material of pressure membrane |
316L |
|
material of housing |
1Cr18Ni9Ti |
|
weight |
180g |

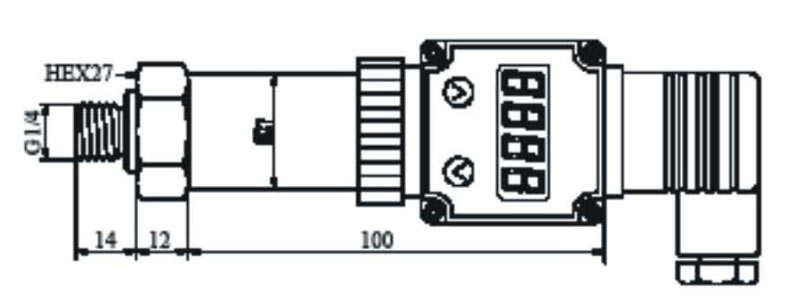

Product Dimensions
Product Features
● With LED/LCD display
● Imported
silicon sensor chip employed
● Perfect
long term stability
● CE
certificate
● OEM
service provided
●
Sillicon sensor cell employed
Product Dimensions
Product Specification
|
pressure medium |
gas liquid compatible stainless steel |
|
pressure ranges |
0~2...1000bar |
|
overload pressure |
150%FS |
|
output signal |
4~20mA, 0~5V, 0~10V, 1~5V |
|
accuracy |
0.5%FS (standard) |
|
load resistance |
RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output) |
|
long term stability |
<0.25%FS/year |
|
supply voltage |
10~30V |
|
compensated temperature range |
-10~70°c |
|
operating temperature range |
-40~+120°c |
|
storage temperature range |
-40~+120°c |
|
temperature coefficient of zero |
0.3%FS/10°c |
|
temperature coefficient of span |
0.3%FS/10°c |
|
insulation resistance |
100MΩ@ 50VDC |
|
process connection |
G1/4 or others |
|
electrical connection |
DIN 43650 or others |
|
material of wetted part |
1Cr18Ni9Ti |
|
material of pressure membrane |
316L |
|
material of housing |
1Cr18Ni9Ti |
|
weight |
180g |
