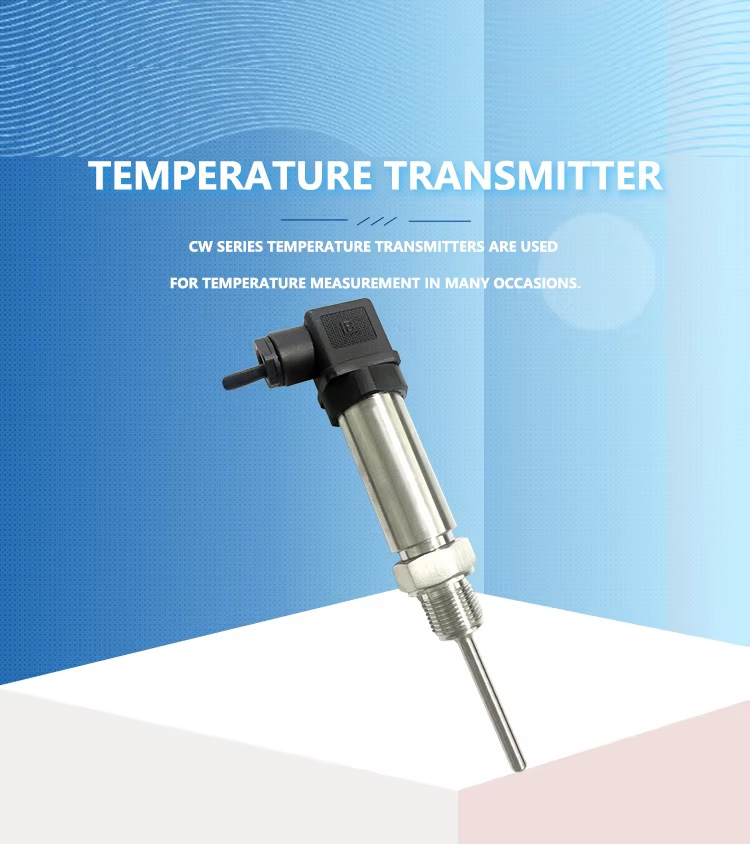

High Temperature Transmitter Pt100 Pressure Sensor



Temperature transmitters use semiconductor temperature sensors, platinum resistances, etc. as temperature sensitive components, and output standard industrial signals after temperature compensation, digital circuit correction and signal conditioning. Each type of product has undergone careful design, component screening, process verification and curing, cyclic loading and aging, environmental simulation testing and other processes to ensure that each product is stable and reliable.

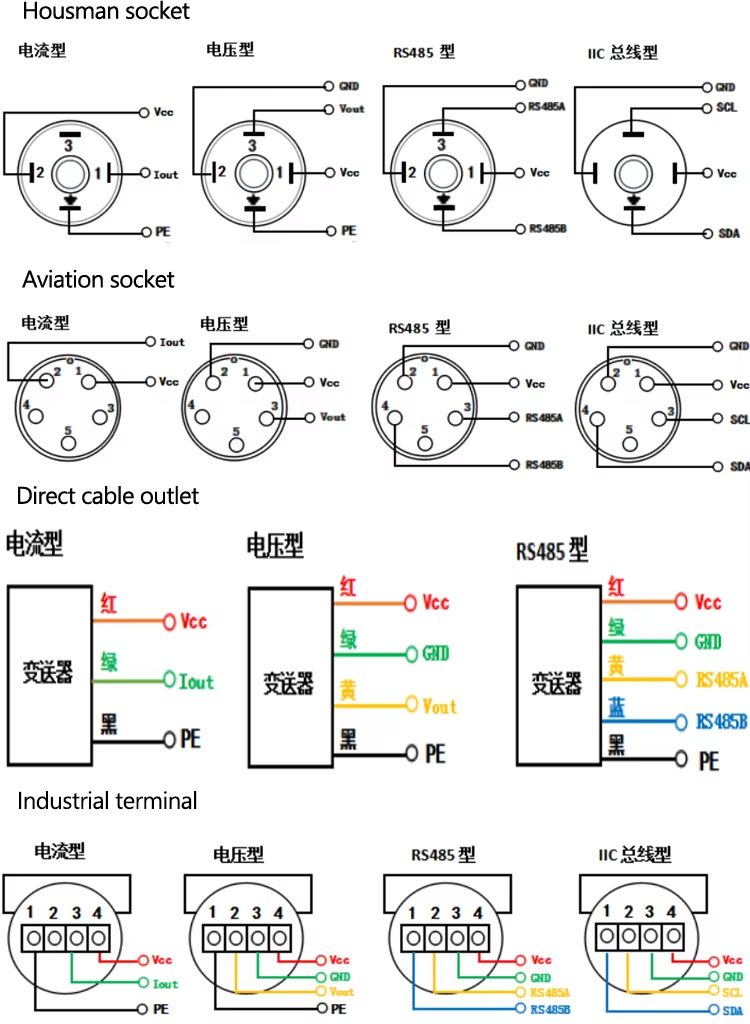

Electrical connection

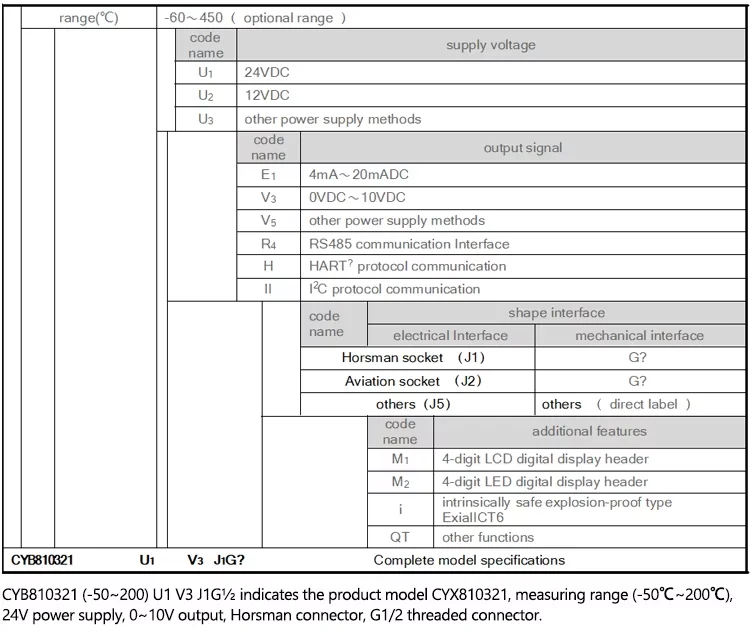

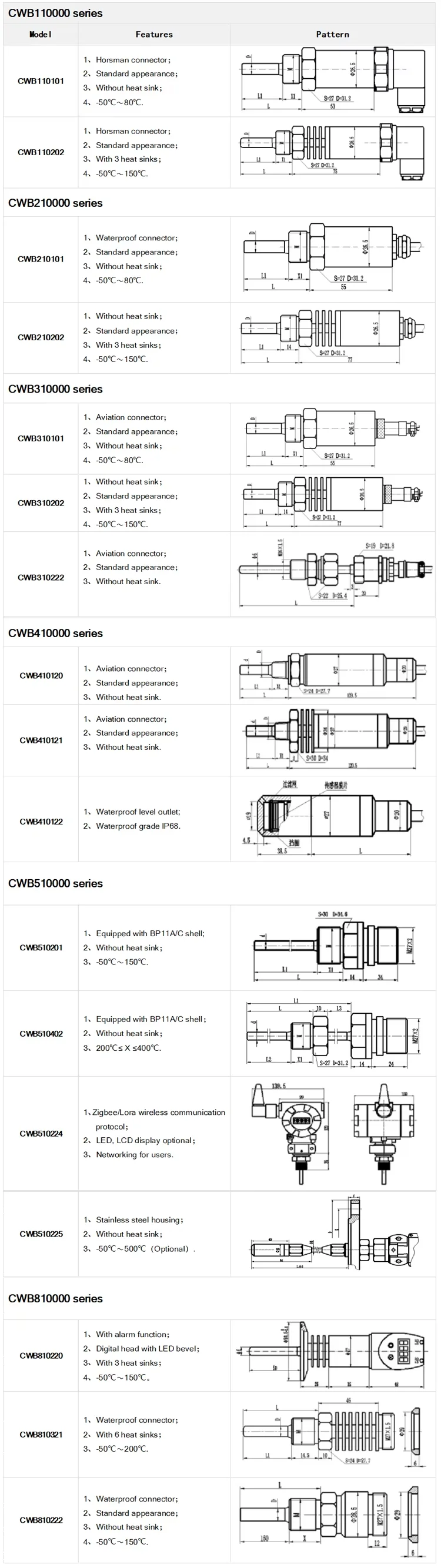

Order guide



● compact size, easy to install

● high stability, low drift

● a variety of structures to choose from

● Power supply mode

● it can be used in various industrial occasions and has strong versatility

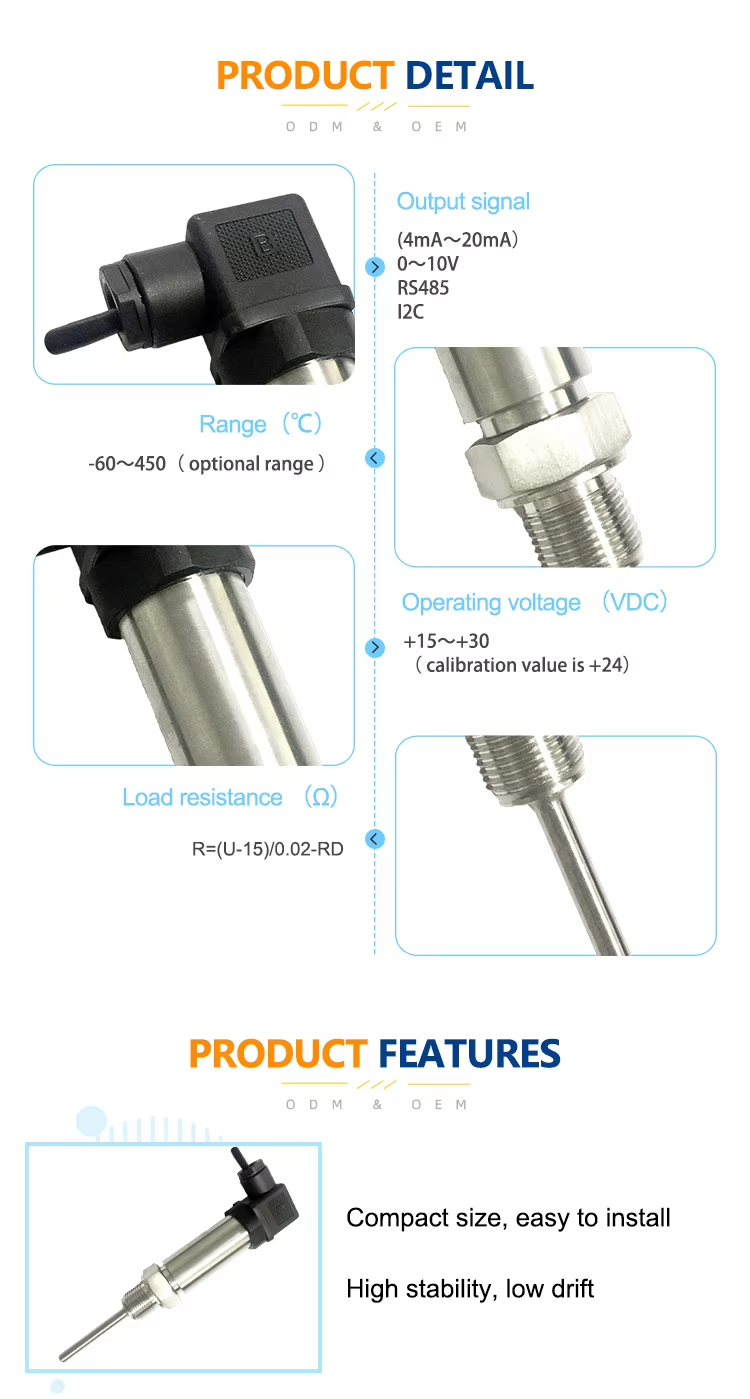

range（℃）	-60～450（ optional range ）
accuracy （℃）	0.25 (customized)	0.5	1.0
long-term stability (%FS/year)	≤0.25	≤0.5	≤1.0
operating voltage （VDC）	+15～+30（ calibration value is +24）
output signal	(4mA～20mA）、0～10V、RS485、I2C
working environment temperature （ with header ）（℃）	-30～+60
load resistance （Ω） (4mA～20mA）	R=(U-15)/0.02-RD among them: U is the power supply voltage RD is the internal resistance of the cable
response time （10%～90%）s	20（ typical value ）
measuring medium	fluid compatible with 304 and 316L
shell material	304、316L
interface	304, 316L optional
protection level	IP65

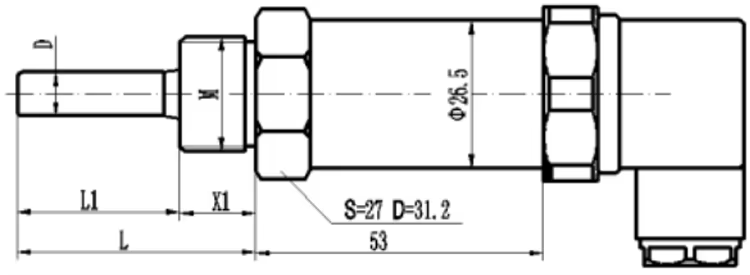

Size D	Length L	Size D	Length L	Size D	Length L
M22*1.5	15	M16*1.5	15	1/2NPT	18
G1/2	15	M14*1.5	15	1/2PT	18
M20*1.5	15	G1/4	15	3/8NPT	15
M18*1.5	15	M12*1	15	3/8PT	15
G3/8	15	M10*1	12	1/4NPT	15

                                                 Recommended optional connector size for transmitter
