Atech Solar powered lorawan 4g IOT Intelligent Wireless Pressure Transmitter

Atech Solar powered lorawan 4g IOT Intelligent Wireless Pressure Transmitter

Stable performance

Real-time monitoring

Multi-network communication

Ultra-low power consumption

Send Inquiry
Products Description

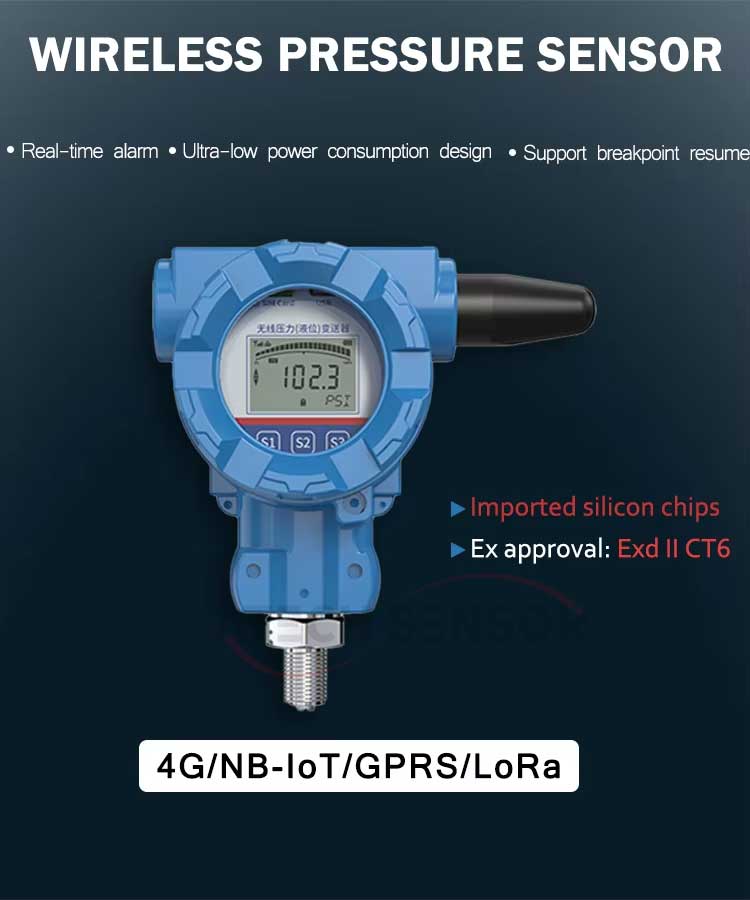

The wireless pressure transmitter uses a large-capacity lithium battery to provide a stable and reliable power supply for the product, enabling it to operate safely for more than 5 years(uploaded once an hour). The self-developed low-power system can not only provide users with on-site data through the LCD screen, but also upload data through the wireless module, and even graft the data to the user's own cloud platform. The powerful control algorithm enables the instrument to have signal breaks, Transmission, working mode automatic switching, pressure fluctuation real-time alarm, one-click wake-up and other practical functions.


Product Features



Stable performance

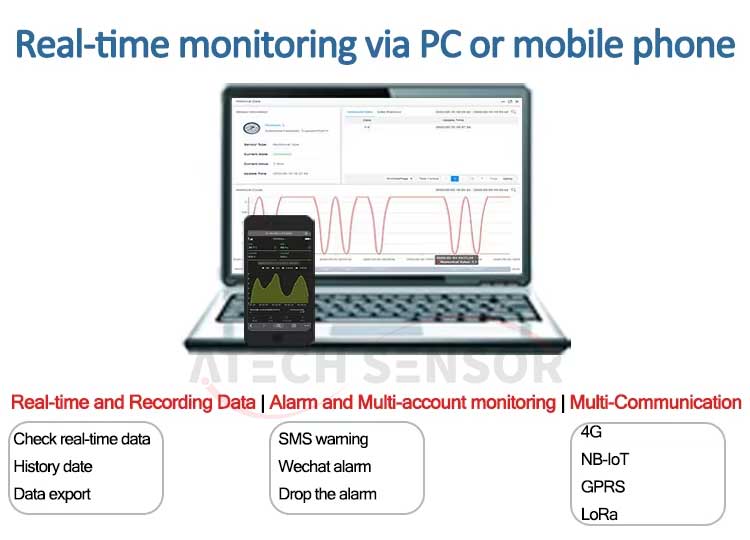

Real-time monitoring

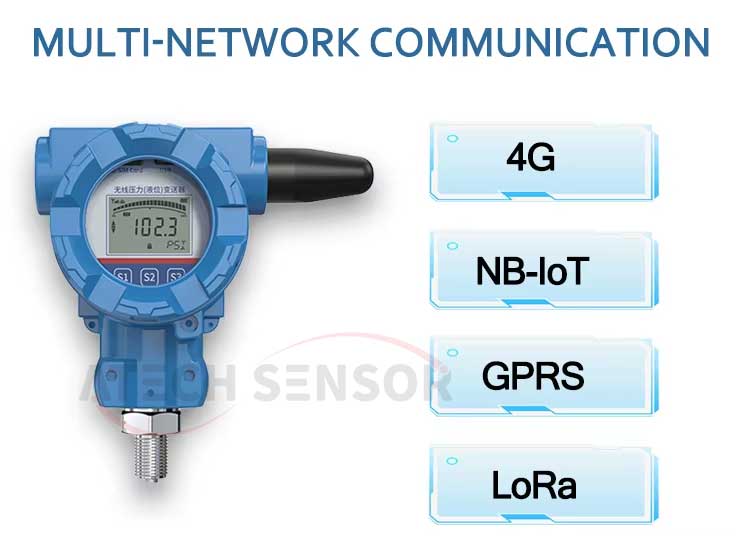

Multi-network communication

Ultra-low power consumption



Product Specification



Product Name
Wireless pressure sensor
Pressure Range
0 ~ 100MPA optional
Configuration method
Local USB / remote configuration
Working power
3.6V,19Ah (Can be replaced by yourself)
Battery Life
5 years (send data every hour)
Power consumption
Normal work 70mA sleep is less than 0.1mA, data sending and receiving 330mA
Display
2.4 inch large size LCD screen
Network format
NB-IOT/GPRS/4G/LoRa
Antenna
External waterproof antenna
SIM Card
Built-in SIM card
Sampling interval
1 time / min
Wake-up mode
Buttons, timing, USB
Upload information
Pressure, temperature, signal, battery power
Working temperature
-30℃~+70℃(Medium does not crystallize)
Accuracy
0.5
Temperature influence
0.015%F.S/℃
Waterproof level
Normal IP66/Explosion-proof type IP68
Weight
Normal 0.55kg/ Explosion-proof type 1.5kg
Installation
Vertical and horizontal installation
Certificate
CE, RoHS, Ex d IIB T6 Gb



Product Dimensions



Product Features



Stable performance

Real-time monitoring

Multi-network communication

Ultra-low power consumption



Product Dimensions

Product Specification



Product Name
Wireless pressure sensor
Pressure Range
0 ~ 100MPA optional
Configuration method
Local USB / remote configuration
Working power
3.6V,19Ah (Can be replaced by yourself)
Battery Life
5 years (send data every hour)
Power consumption
Normal work 70mA sleep is less than 0.1mA, data sending and receiving 330mA
Display
2.4 inch large size LCD screen
Network format
NB-IOT/GPRS/4G/LoRa
Antenna
External waterproof antenna
SIM Card
Built-in SIM card
Sampling interval
1 time / min
Wake-up mode
Buttons, timing, USB
Upload information
Pressure, temperature, signal, battery power
Working temperature
-30℃~+70℃(Medium does not crystallize)
Accuracy
0.5
Temperature influence
0.015%F.S/℃
Waterproof level
Normal IP66/Explosion-proof type IP68
Weight
Normal 0.55kg/ Explosion-proof type 1.5kg
Installation
Vertical and horizontal installation
Certificate
CE, RoHS, Ex d IIB T6 Gb
