Products Description

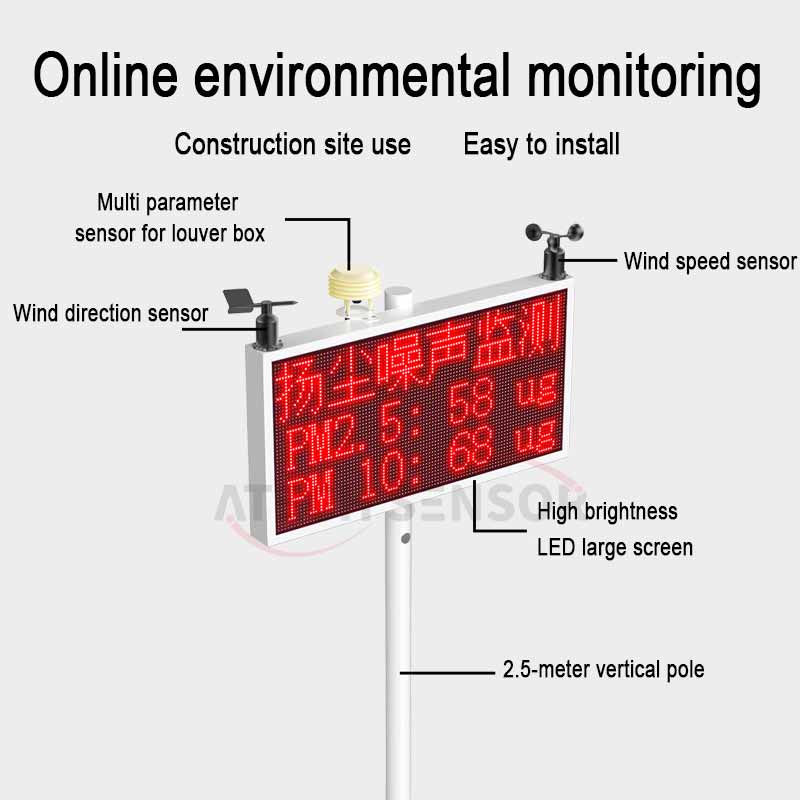

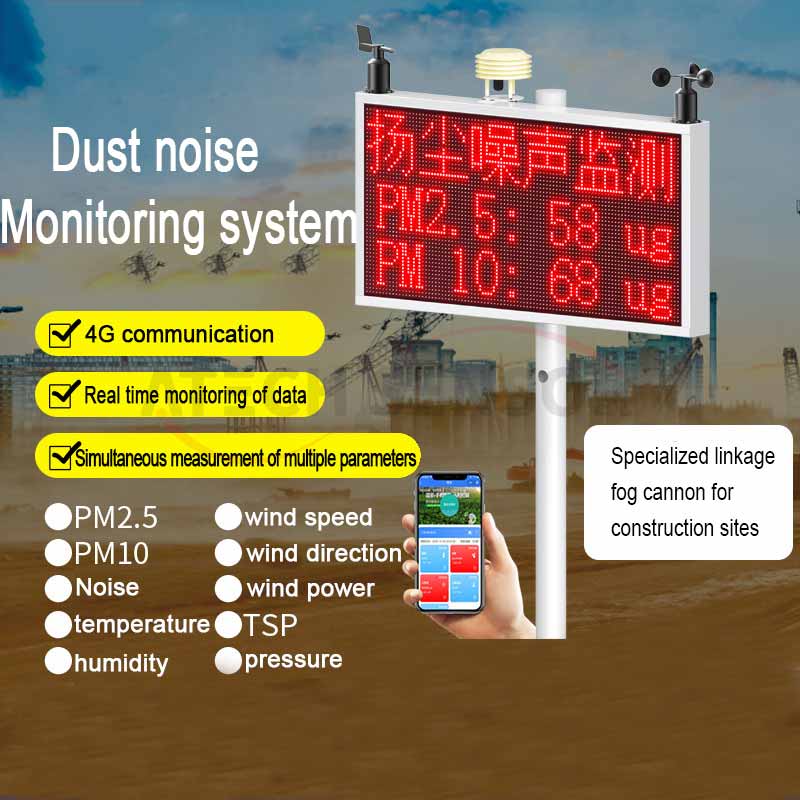

The dust noise online monitoring system is an online monitoring system that measures the concentration of particulate matter and the degree of noise in the surrounding environment based on light scattering counting method and sound sensing technology. It is mainly used for construction sites. The instrument has complete independent intellectual property rights, and its performance indicators have reached the international excellent level. It has passed the certification requirements of various relevant standards, and can further meet the market's demand for high-quality, high-precision, high-stability, and high-reliability continuous automatic monitoring systems for ambient air.

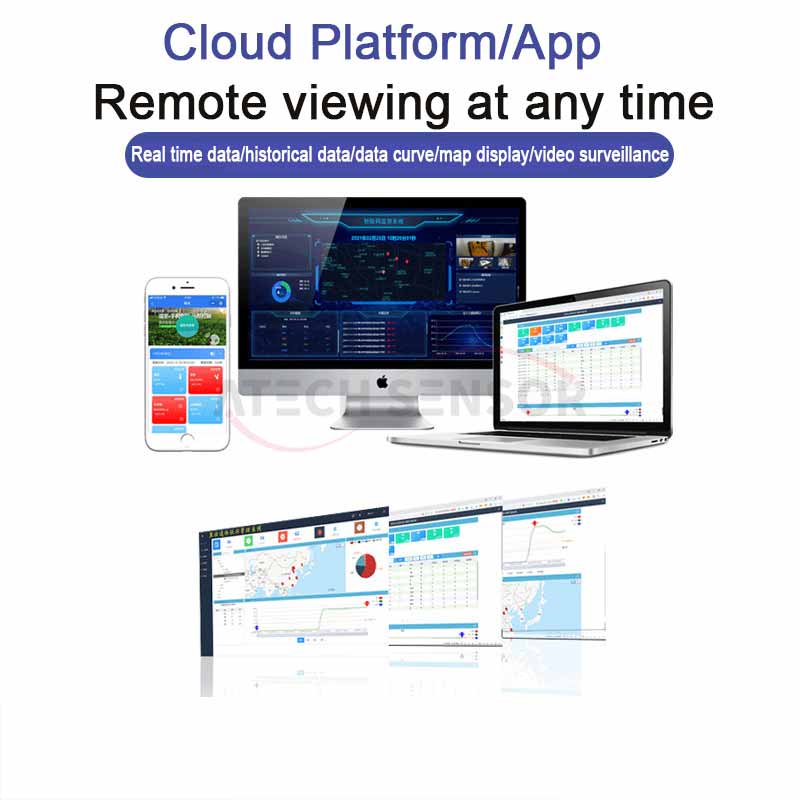

The basic structure of the system will be a multi-point monitoring and early warning, centralized monitoring method. The construction site measurement point can be set up at one or more points according to demand. The monitoring point can be set up at the construction site or at a location far away from the construction site, connected by wireless network communication means, and can be remotely monitored and data stored.
The dust noise online monitoring system is an automatic "measurement-control" system with a monitoring sensor as the core. It uses the principle of lossless measurement and combines internationally mature electronic technology and communication technology to develop and develop a new technology product. The system has strong practicality and ideal performance-price ratio, and is an ideal product for automatic monitoring of noise and dust pollution sources at construction sites.
Product Features
●Easy installation
●Real-time data monitoring
●Simultaneous measurement of multiple parameters
●It has windproof, rainproof, dustproof and other functions
●Stable performance, accurate data
Product Specification
| Air temperature | -40~80ºC |
| Air humidity | 0~100%RH |
| Wind speed range | 0~60m/s |
| wind direction range | 8 directions |
| Noise range | 30~130dB |
| Resolution | 0.1ºC;0.1m/s;0.1dB;±0.1%RH |
| Accuracy | ±0.5ºC;±3%RH;±0.3m/s;±0.5dB |
| Powered by | AC220V |
Product Dimensions
Product Features
●Easy installation
●Real-time data monitoring
●Simultaneous measurement of multiple parameters
●It has windproof, rainproof, dustproof and other functions
●Stable performance, accurate data
Product Dimensions
Product Specification
| Air temperature | -40~80ºC |
| Air humidity | 0~100%RH |
| Wind speed range | 0~60m/s |
| wind direction range | 8 directions |
| Noise range | 30~130dB |
| Resolution | 0.1ºC;0.1m/s;0.1dB;±0.1%RH |
| Accuracy | ±0.5ºC;±3%RH;±0.3m/s;±0.5dB |
| Powered by | AC220V |
