Products Description

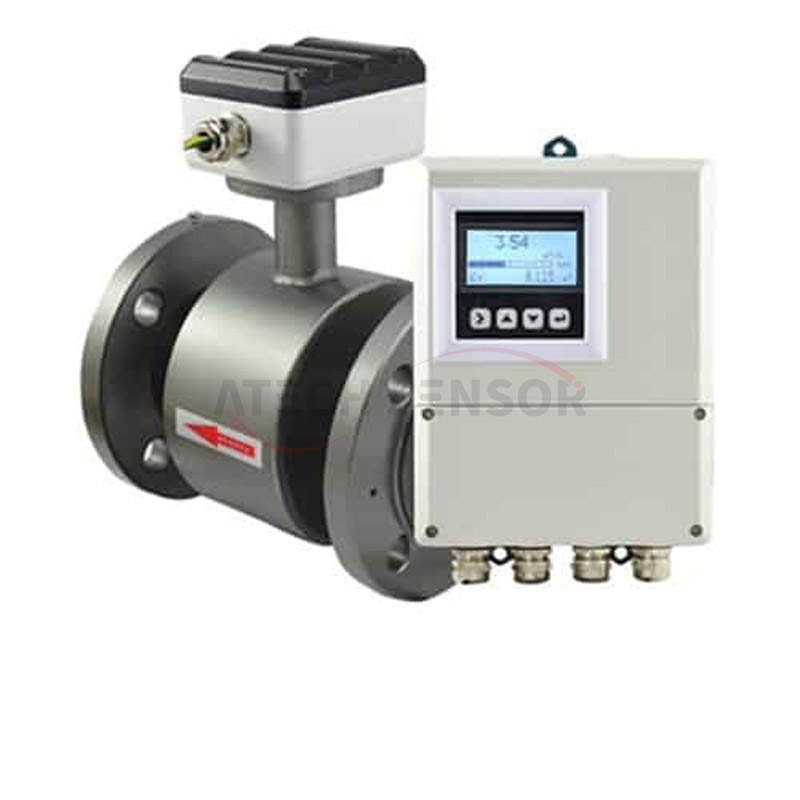

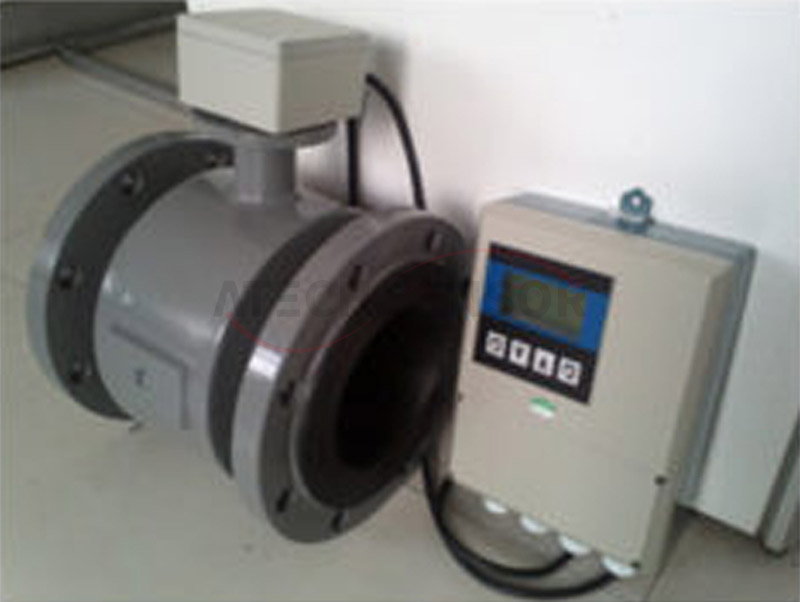

Split Type Magnetic Flow Meter,is a Stainless steel electromagnetic water flow sensor,with pulse output, remote, IP68 flow meter.
Magnetic Water Flow Meter is applicable for all conductive liquids,
such as: Domestic water, industrial water, raw water, ground water, urban sewage,industrial wastewater, the processed neutral pulp, pulp slurry, etc.
Product Features
●High accuracy
●Low cost
●Little to no pressure loss
●Readings that are unaffected by changes in density or viscosity
●No susceptibility to bearing wear or other mechanical wear-and-tear issues
●Moisture proof and waterproof performance is good. Suit for setting up and being used underground or wet environments;
●Compare with other flowmeter, its advantage : big measurement range , low demand in straight pipe, high accuracy;
●Low power consumption, one set flowmeter power consumption less than 20W.
Product Specification
| Electromagnetic flow meter | |
| Medium | Acid, alkali, salt and other corrosive medium in chemical industry |
| Diameter | DN6~DN2200mm |
| Accuracy | ±0.5% |
| Medium temperature | <60ºC |
| Nominal pressure | GB 0.6MPa (DN700~DN2200) |
| GB 1.0MPa (DN200~DN600) | |
| GB 1.6MPa (DN6~DN150) | |
| DIN PN16,PN25,PN40,PN63 | |
| JIS10K,20K,40K | |
| ANSI Class150,Class300,Class600, others can be customized | |
| Flow rate | 0.3~10m/s |
| Straight pipe required | Upstream ≥5DN,downstream ≥3DN |
| Electrode | HastalloyB(HB),HastalloyC(HC),Titanium(Ti),Tantalum(Ta),Platinum(Pt), |
| Tungsten carbide(WC) (For acid and alkali salt solution) | |
| Installation way | Carbon steel flange (standard), Stainless steel flange(optional) |
| Body material | Carbon steel (standard),Stainless steel(optional) |
| Power supply | 220VAC/24VDC/lithium battery |
| Signal output | Pulse and 4~20mA;(if use lithium battery, without signal output) |
| Communication | RS485,GPRS,Hart |
| Explosion-proof | No |
| Protection proof | IP65(compact type),IP67,IP68(suitable for remote type) |
| Work environment | Ambient temperature:-20~+60ºC,Ambient humidity:5%~90% |
| Power | <20W |
