Products Description

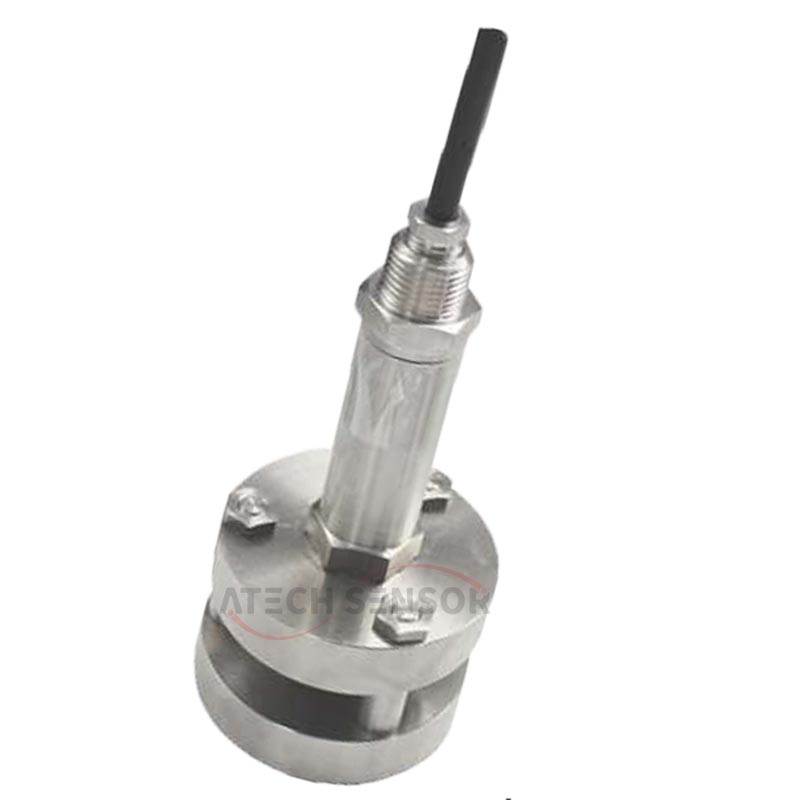

Submersible Pressure Transducer with Debris Standoff has a rugged design for harsh environments, perfect for waste, salt, brackish, or fresh water systems. It is also compatible with a wide range of chemicals.
Product Features
●Flush diaphragm transducer with debris avoidance standoff
●Industry standard 4-20mA output
●Pressure ranges 0-5, 0-7.5, 0-10, and 0-15 PSIG
●Accuracy of 0.5%
●Long-term stability
●316SS housing with 316SS diaphragm
●EMI/RFI and reverse polarity protection
●ETFE cable
Product Specification
| Performance@25C(77°F) | |
| Accuracy | ± 0.5% FS (includes non-linearity, hysteresis and non-repeatability) |
| Stability | 1% FS |
| Over pressure protection | 1.5X Rated Pressure |
| Burst Pressure | 3X minimum |
| Pressure Cycles | >4 Million |
| Environmental Data | |
| Operating temp | 40 to 85°C (-40 to +185°F) |
| Compensated range | -10 to 70C(14 to 158°F) |
| Electrical Data | |
| Excitation | 8-30 Vdc |
| Loop resistance @ 24 Vdc | ≤800 ohm |
| Load resistance@24Vdc | ≥3KΩ |
| Zero offset | <±1.0% of FS |
| Span tolerance | <±1.0% of FS |
| Physical data | |
| Diaphragm material | 316SS |
| Body material | 316SS |
| Cable Pull Strength | 280Ib |
| Pressure Connection | Flush Diaphragm with Debris Standoff |
| Electrical Connection | Molded, vented submersible cable (ETFE outer jacket) |
| Rating | IP68 |

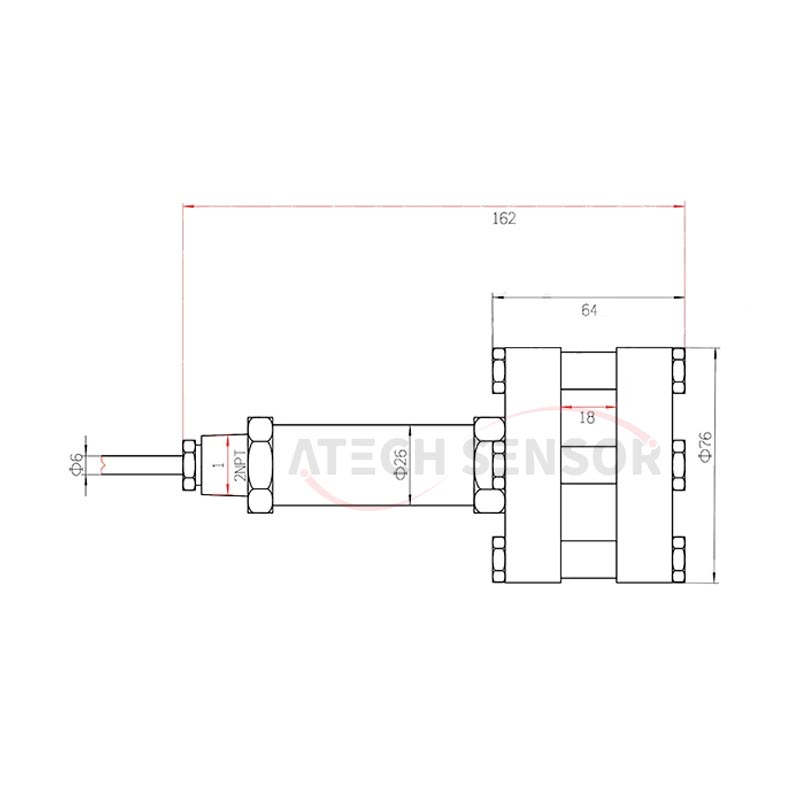

Product Dimensions
