Products Description

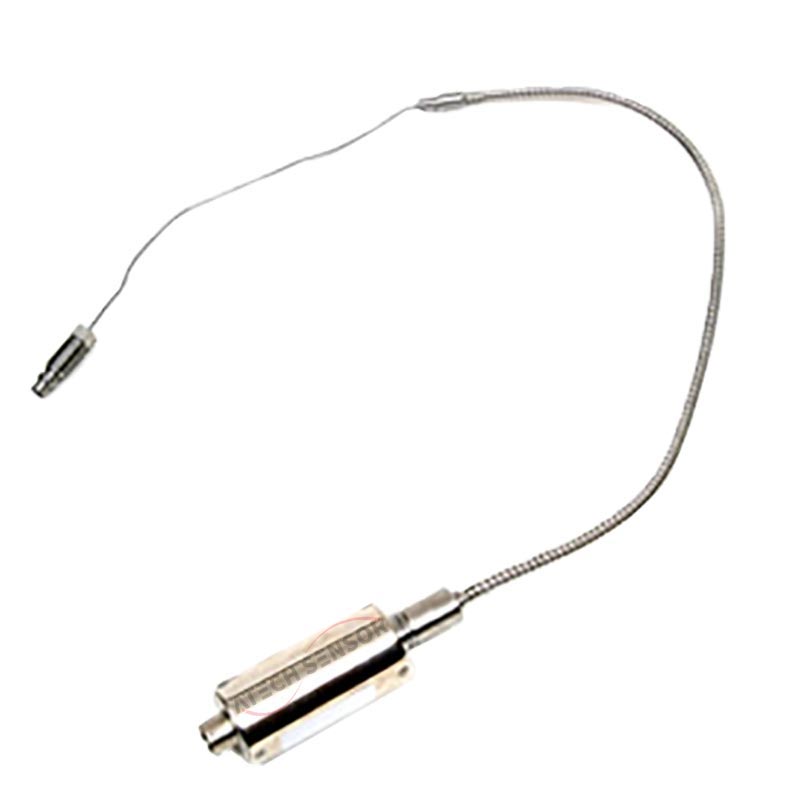

Melt pressure sensor is an instrument used to measure the pressure of molten materials under high temperature conditions. It is widely used in chemical fiber plastics, spinning, polyester, rubber and plastic machinery and other fields to ensure the stability and safety of the production process.
Product Features
●Fluid filled system
●Standard 3.33mV/V
●6pin Bayonet Connector
●10" Exposed Capillary
●18" Flex
●0.5% Combined Error
●80% Output Calibration
●Industry Standard Housing
●750℉ (400℃) Rating
●Ranges from 3000 to 20,000 psi
●15-5 Stainless Steel Diaphragm
Product Specification
| Mechanical | |
| Range | 3000,5000,7500,10,000,15,000, 20,000 |
| Accuracy | +/-0.5% |
| Repeatability | +/- 0.2% Of Full Scale |
| Overload Capability | 2x Full Scale |
| Mounting Torque | 150 Inch-Ibs MIN 500 Inch-Ibs MAX |
| Temperature Effects | |
| Maximum Diaphragm Temp | 750℉ (400℃) Mercury Fill |
| Zero/Span Shift (Diaphragm Temp Change) | Mercury Fill: 28 psi / 100°F (60 psi / 1000℃) typical |
| Maximum Housing Temp | 185℉ (85℃) |
| Zero/Span Shift(Electronics Temp Change) | 0.03%F.S/℃MAX |
| Electrical | |
| Outputs | Output 3.33 mV/V (optional 4-20mA and 0-10 vdc) |
| Supply Voltage | 10 vdc for Mv/v and 16-36 vdc for amplified units |
| Insulation Resistance | 1000 megohms @ 50 VDC |
| Zero&Span (Trim pots) | ± 15% |
| Internal Shunt Calibration | 80% ±0.2% of Full Scale |
| Update Rate | <25ms |

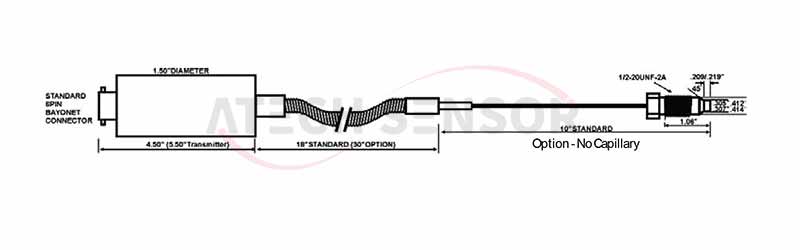

Product Dimensions
Product Features
●Fluid filled system
●Standard 3.33mV/V
●6pin Bayonet Connector
●10" Exposed Capillary
●18" Flex
●0.5% Combined Error
●80% Output Calibration
●Industry Standard Housing
●750℉ (400℃) Rating
●Ranges from 3000 to 20,000 psi
●15-5 Stainless Steel Diaphragm
Product Dimensions
Product Specification
| Mechanical | |
| Range | 3000,5000,7500,10,000,15,000, 20,000 |
| Accuracy | +/-0.5% |
| Repeatability | +/- 0.2% Of Full Scale |
| Overload Capability | 2x Full Scale |
| Mounting Torque | 150 Inch-Ibs MIN 500 Inch-Ibs MAX |
| Temperature Effects | |
| Maximum Diaphragm Temp | 750℉ (400℃) Mercury Fill |
| Zero/Span Shift (Diaphragm Temp Change) | Mercury Fill: 28 psi / 100°F (60 psi / 1000℃) typical |
| Maximum Housing Temp | 185℉ (85℃) |
| Zero/Span Shift(Electronics Temp Change) | 0.03%F.S/℃MAX |
| Electrical | |
| Outputs | Output 3.33 mV/V (optional 4-20mA and 0-10 vdc) |
| Supply Voltage | 10 vdc for Mv/v and 16-36 vdc for amplified units |
| Insulation Resistance | 1000 megohms @ 50 VDC |
| Zero&Span (Trim pots) | ± 15% |
| Internal Shunt Calibration | 80% ±0.2% of Full Scale |
| Update Rate | <25ms |
