Products Description

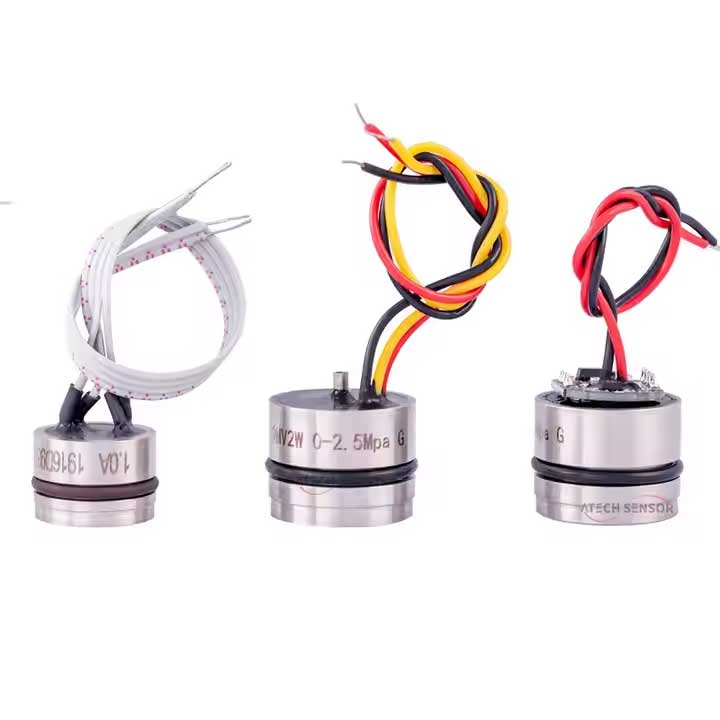

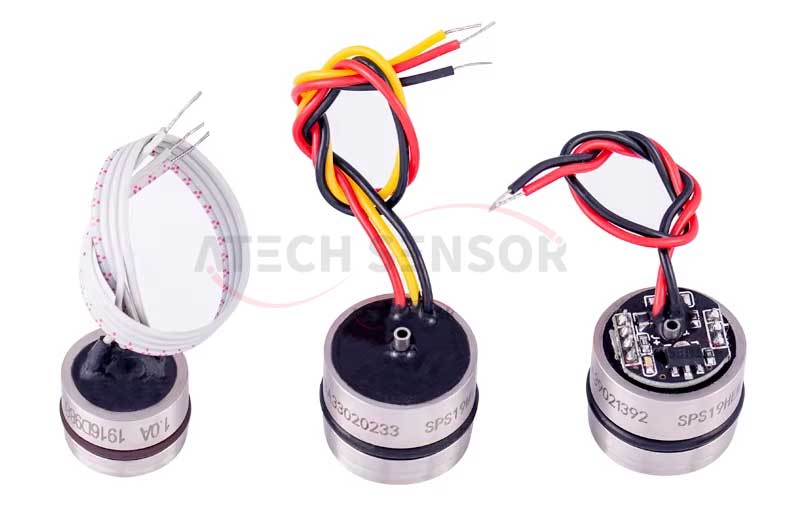

PS19 industrial pressure sensor is a standard and common sensor applied in air and chemi-industry, liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. Silicon Oil-filled and isolated from measured media by a stainless steel diaphragm and body. The most important specification for industry application is long term stability.
The PS19 sensoris designed for industry application with perfect long term stability.
Product Features
● It can be used for a wide range of media, including oil, water and pastes compatible with 316 stainless steel and 304 stainless steel, and has a certain anti-corrosion ability.
● High accuracy, high stability, imported original sensors, good linearity and high temperature stability.
● Small size, light weight, easy installation, debugging and use.
● Stainless steel fully enclosed shell, good waterproof.
Product Specification
| Pressure medium | gas liquid compatible to stainless steel |
| Pressure ranges | 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa,2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa |
| Pressure type | gauge (G), absolute (A), sealed gauge (S) |
| Overload pressure | 300%F.S.( 70kPa) |200%F.S.( 25MPa) |150%F.S.( 25MPa) |
| Output signal | Zero Output 2mV 100mV (typical) 60mV (for 10kPa) | |
| Accuracy | 0.25%FS (standard) |
| Zero offset | ≤±2mV |
| Long term stability | <0.2%FS/year |
| Excitation | 1.5mA (typical) |5VDC | 10VDC |
| Compensated Temp | - 10℃~+70℃ |
| Operating Temp | -40~+125℃ |
| Storage Temp | -40~+125℃ |
| Zero Temp. Coefficient | 0.02%F.S./ °c ( 100kpa) | 0.03%F.S. /°c (<100kpa) |
| Span Temp. Coefficient | 0.02%F.S./ °c ( 100kpa) | 0.03%F.S. /°c (<100kpa) |
| Bridge Resistance | Min.2600ohm Max.5500ohm |
| Vibration | 20g (20— 5000HZ) |
| Response time | ≤1ms |
| Electrical connection | 6-pin or 4-wire |
| Material of membrane | 316L |
| Material of housing | 316L |
| Sealing | fluoro-rubber sealing ring |
| Filled oil | silicon oil, or olive oil (hygienism) |
| Wire | gold-plated kovar pins, or silicon rubber shielded flexible wires |
| Net weight | 28g |
Product Dimensions
