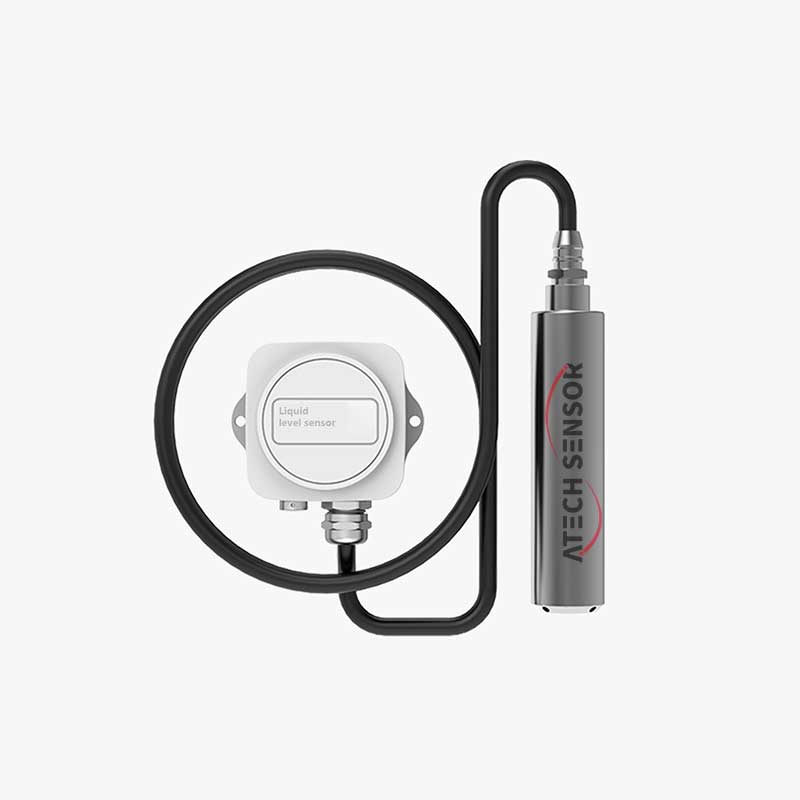

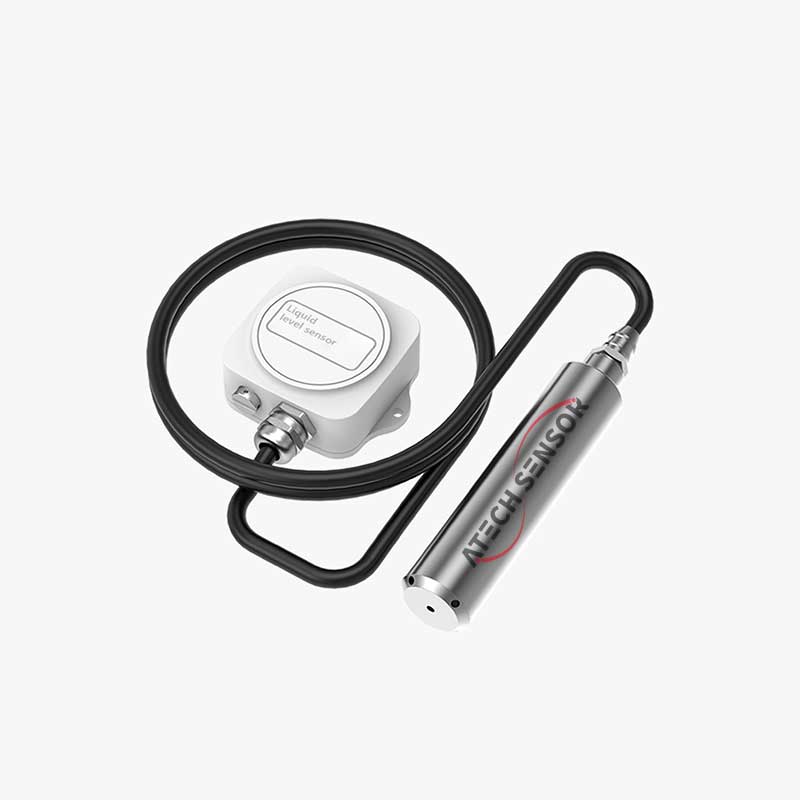

Products Description
The level sensor is composed of a water level collector and a data acquisition host. It can be used for real-time online monitoring of water levels in cable wells, cable channels, ponds, wells and other places.
Product Features
● Based on the widespread silicon pressure technology
● Small size, easy to install
● NFC wireless configuration (optional)
● Communication range > 100 meters, adjustable distance
● Communication is flexible, flexible access gate application
Product Specification
Description | Parameter |
Wireless Communication | LoRa/RS485 (optional) |
Detection Cycle | 1 second |
Data Send Cycle | Ten minutes |
Probe Line Length | 5m (can be customized) |
Measure Range | 0~5m |
The Right Measure | ±0.5%FS |
Overload Pressure | 2 times the range |
Electricity | Battery powered/DC (optional) |
Working Life | 5 years (Every 10 minutes post) |
Operating Temperature | -20 ºC~+60 ºC |
IP | IP68 (Probe) |
Dimensions | 83mm × 65mm×30mm |
Mounting | Foam double-sided glue kana screw fixation |
Product Dimensions
Product Features
● Based on the widespread silicon pressure technology
● Small size, easy to install
● NFC wireless configuration (optional)
● Communication range > 100 meters, adjustable distance
● Communication is flexible, flexible access gate application
Product Dimensions
Product Specification
Description | Parameter |
Wireless Communication | LoRa/RS485 (optional) |
Detection Cycle | 1 second |
Data Send Cycle | Ten minutes |
Probe Line Length | 5m (can be customized) |
Measure Range | 0~5m |
The Right Measure | ±0.5%FS |
Overload Pressure | 2 times the range |
Electricity | Battery powered/DC (optional) |
Working Life | 5 years (Every 10 minutes post) |
Operating Temperature | -20 ºC~+60 ºC |
IP | IP68 (Probe) |
Dimensions | 83mm × 65mm×30mm |
Mounting | Foam double-sided glue kana screw fixation |
