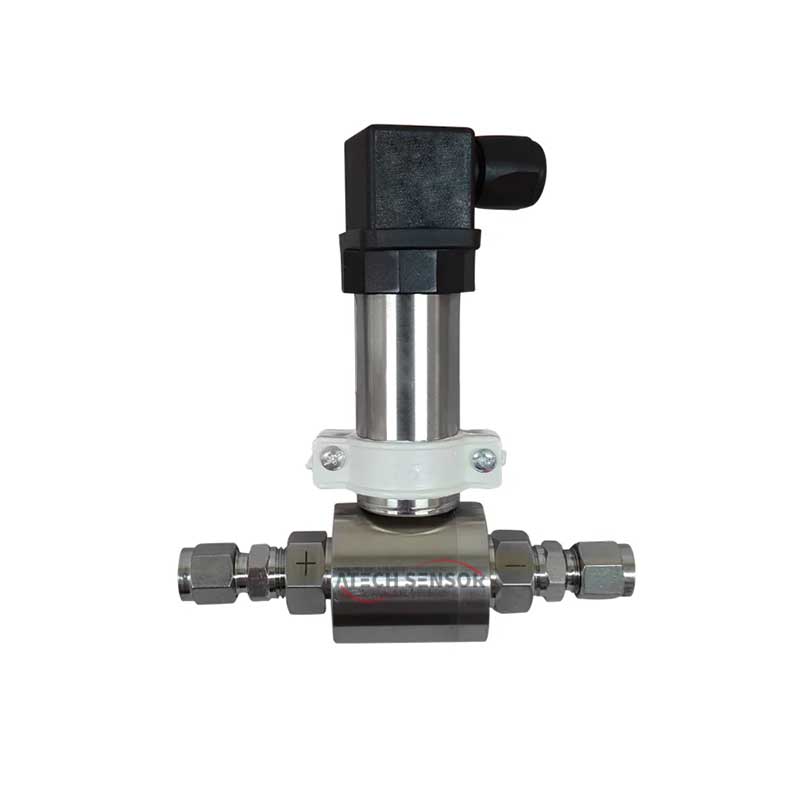

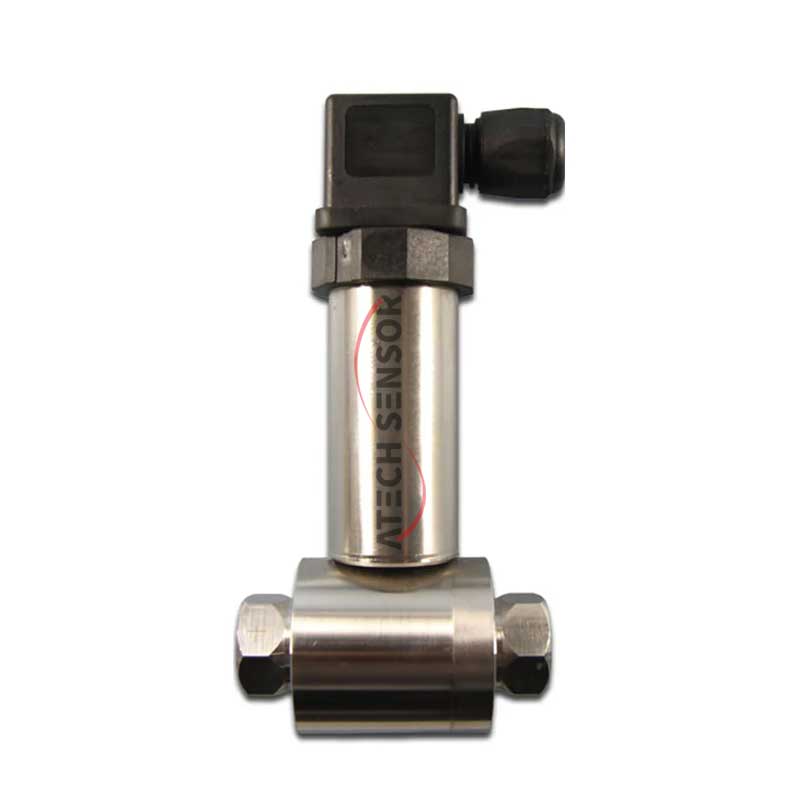

Products Description
For differential pressure detection of liquid media in air conditioning, heating and water technology. Also suitable for slightly corrosive liquids.
Product Features
● High precision: With high measurement accuracy and stability, it can provide accurate differential pressure measurement results and meet various precision measurement and control needs.
● Wide measurement range: It can adapt to various pressure differential ranges to meet the needs of different applications.
● Durability: It adopts corrosion-resistant, high-temperature-resistant or pressure-resistant materials and structural designs to adapt to various corrosive media and harsh environments.
● Fast response: It can respond quickly to small pressure differential changes and convert them into electrical signal outputs for timely monitoring and control of the process.
Product Specification
| Material contacting the medium | Ceramic / stainless steel Al2O3/1.4305 |
| Sealing material | EPDM |
| Measuring range | Depending on the sensor used |
| Pressure type | Differential pressure |
| Static pressure | 21bar |
| Max. Pressure Difference | 200% measuring range |
| Bursting Pressure | 300% measuring range |
| Dynamic response | Suitable for static and dynamic measurements for response time <10ms |
| Accuracy | Typical ±1% in the temperature range -5...75ºC |
| Pressure connector | Inside thread G1/4" |
| Installation arrangement | Unrestricted |
| Enclosure | - Bottom part : stainless steel - Top cover : aluminium pressure die casting |
| Protection | IP65 |
| Ambient temperature | -10...50ºC |
| Media temperature | -10...80ºC |
| Transport | -20...50°C / max. 85% RH, non-condensing |
| Weight | 510g |
| Power supply | DC 15-24V(±10%) (2-wire) |
| Power consumption | Max. 0.5W |
| Output | 4...20mA, max. load 900Ω / DC 24V |
| Power supply | DC 15-24V(±10%) or AC 24V(±10%) (3-wire) |
| Power consumption | Typical 0.37W / 0.9VA |
| Output | 0...10V, min. load 2kΩ |
