Liquid level transmitter Water level sensor integrated instrument Ultrasonic level meter Water level meter

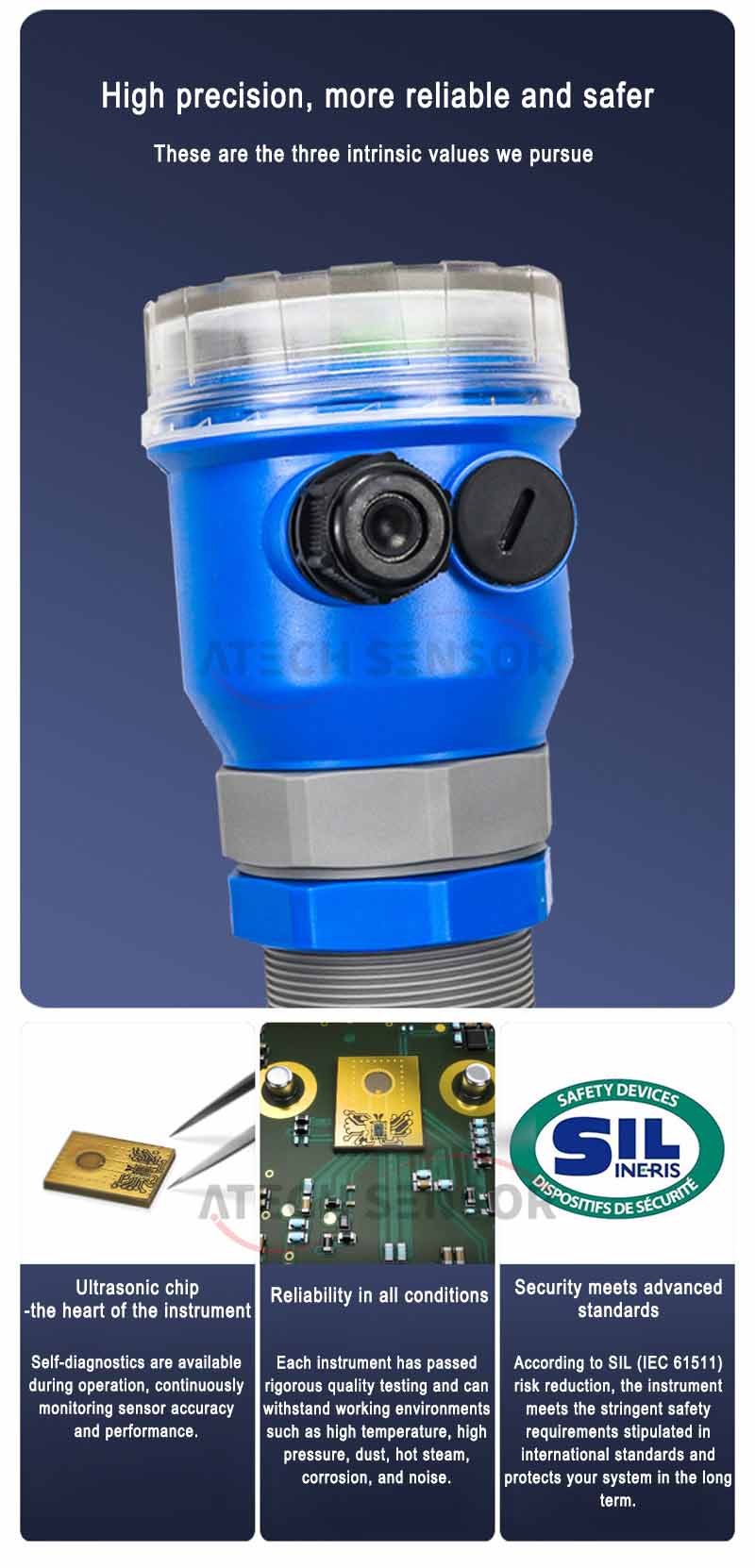

● High precision and strong stability

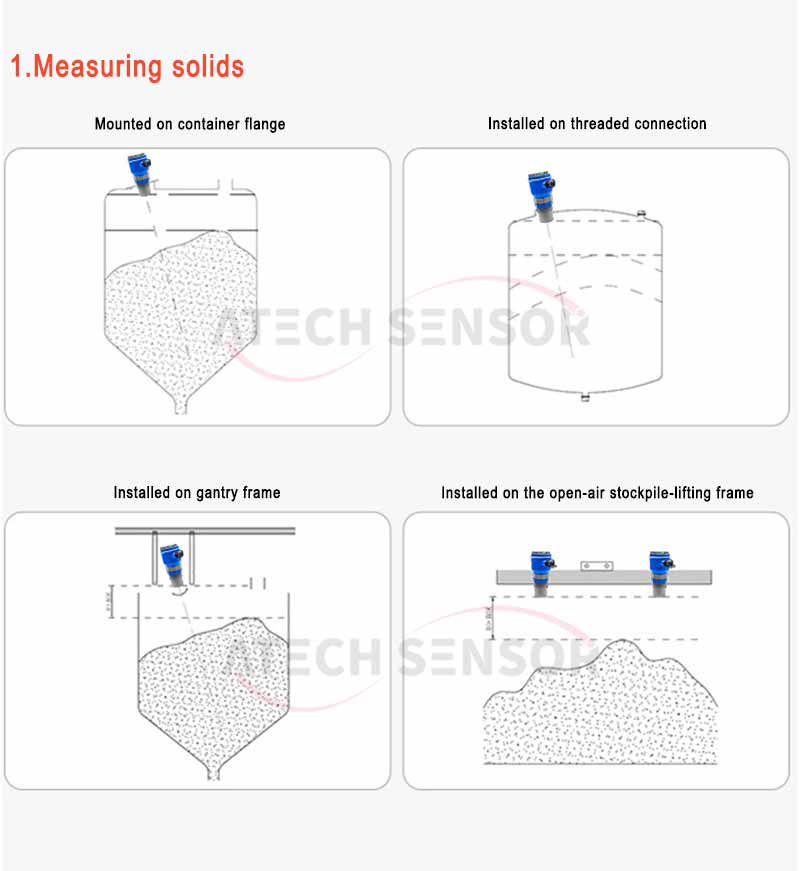

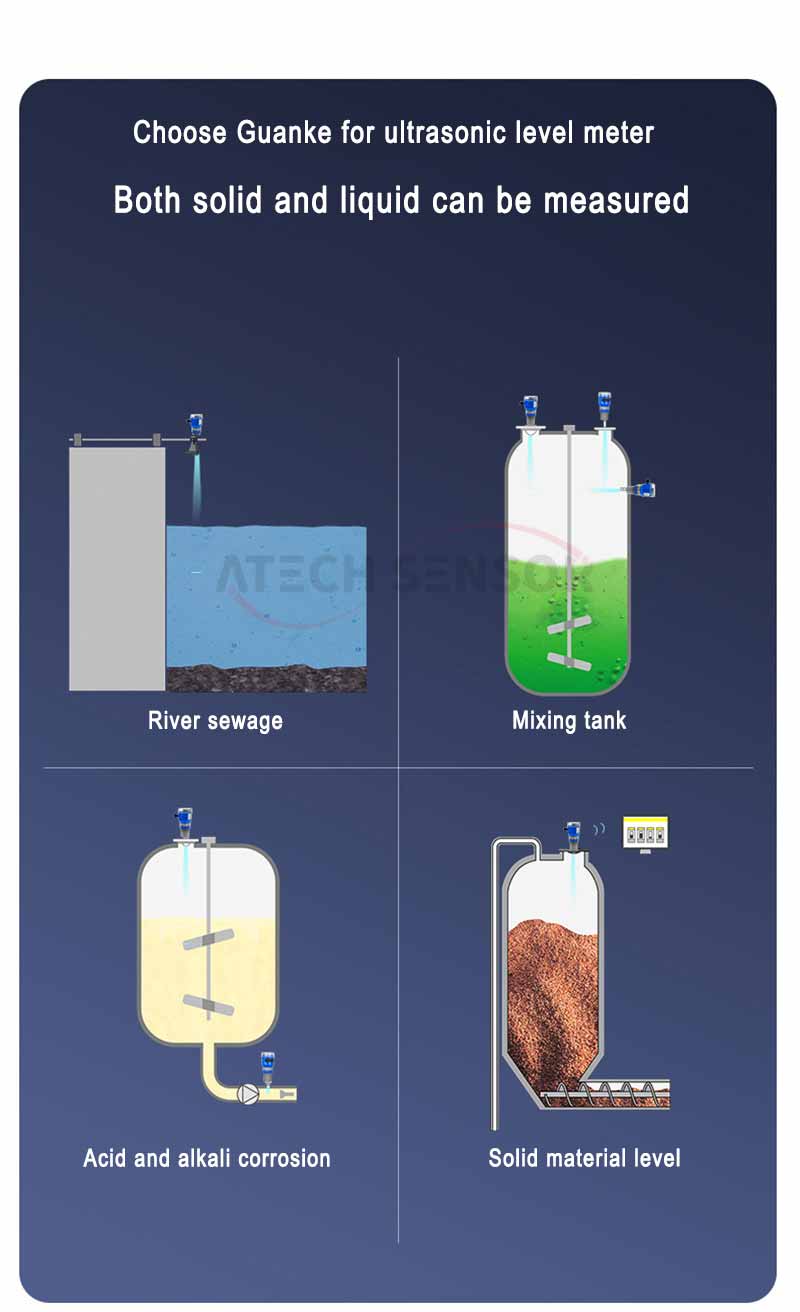

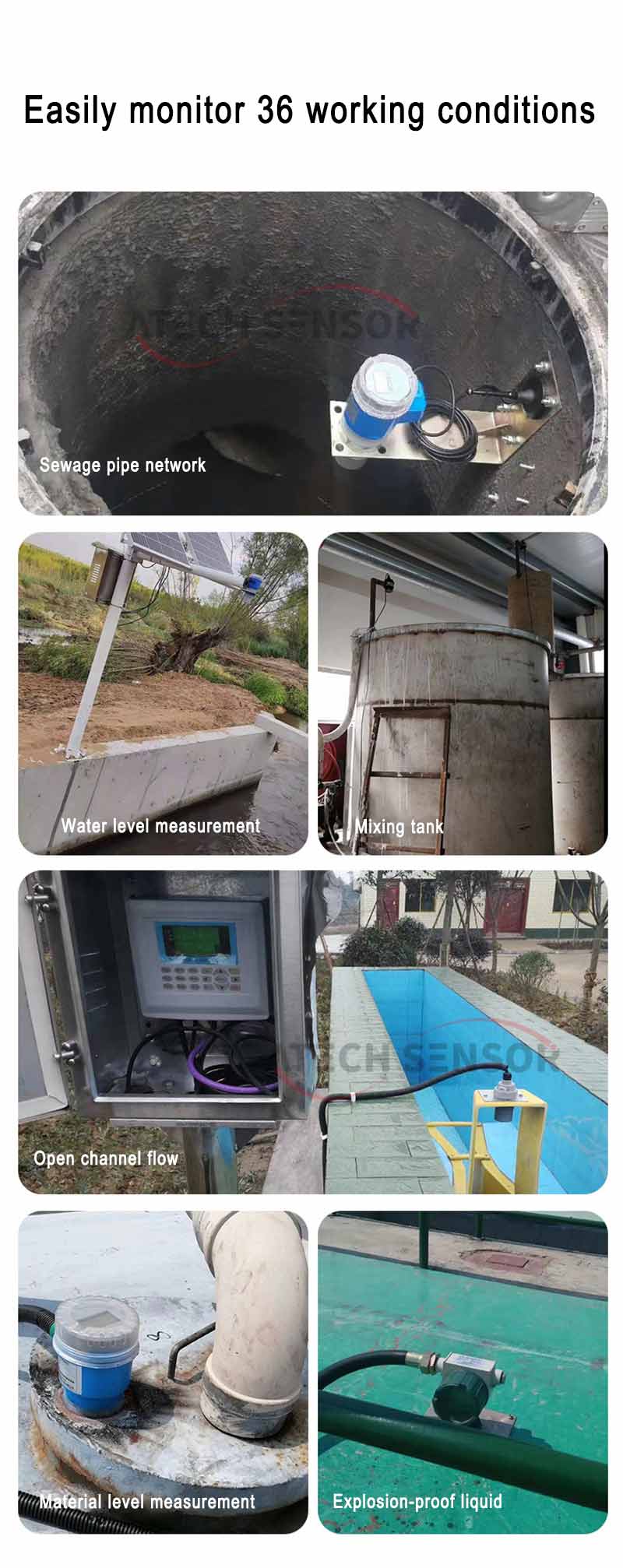

● Both solid and liquid can be measured

● Corrosion-resistant, waterproof and dustproof

● 10° strong focus penetration

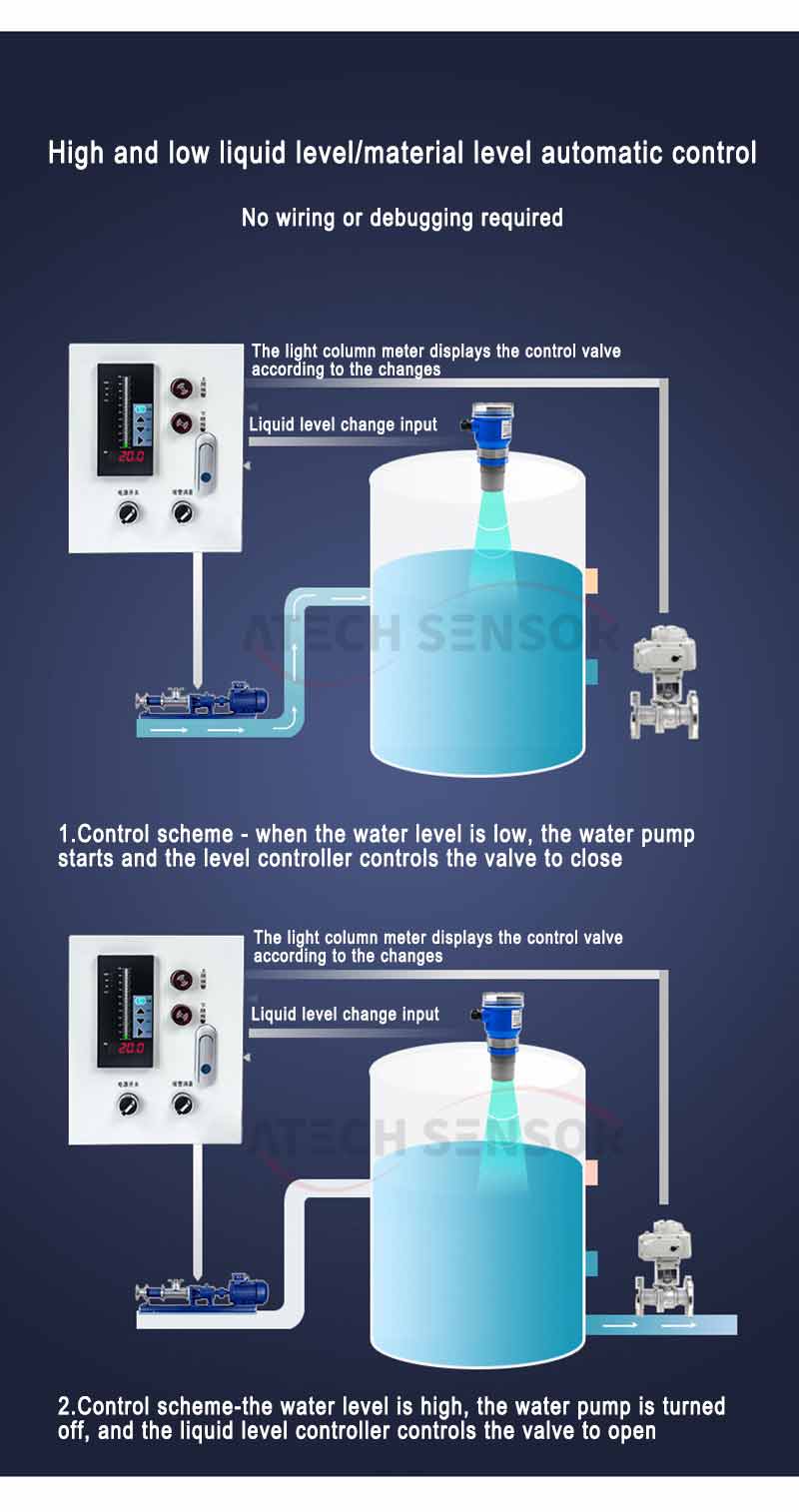

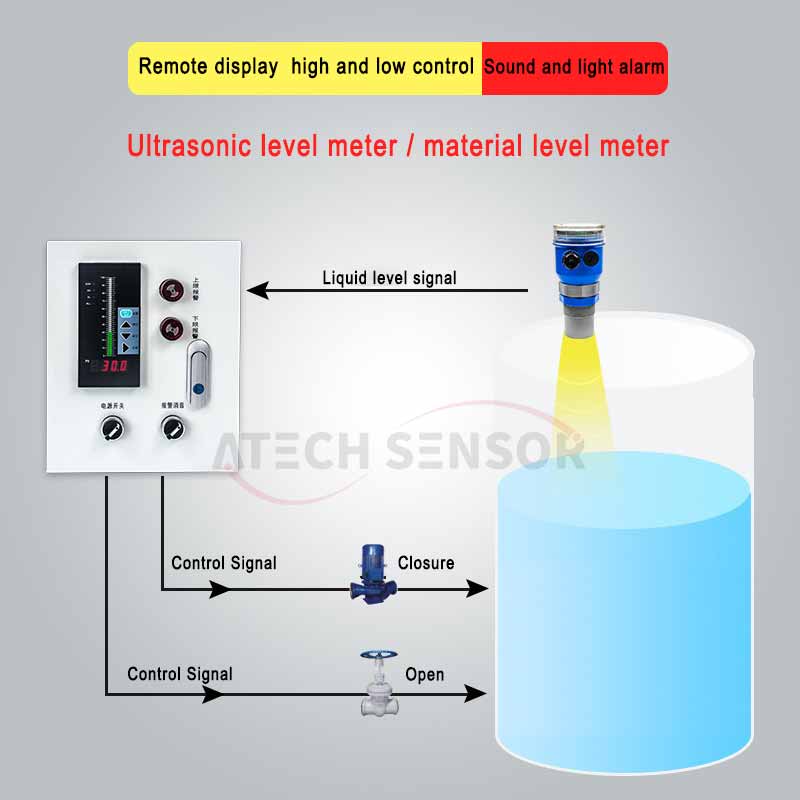

● Automatic high and low liquid level control

● Waterproof grade IP65





Function	Integrated ultrasonic liquid level gauge
Power supply	(18~28)VDC
Product power consumption	5W
Measuring range	5m, 10m (optional)
Accuracy	0.5%FS

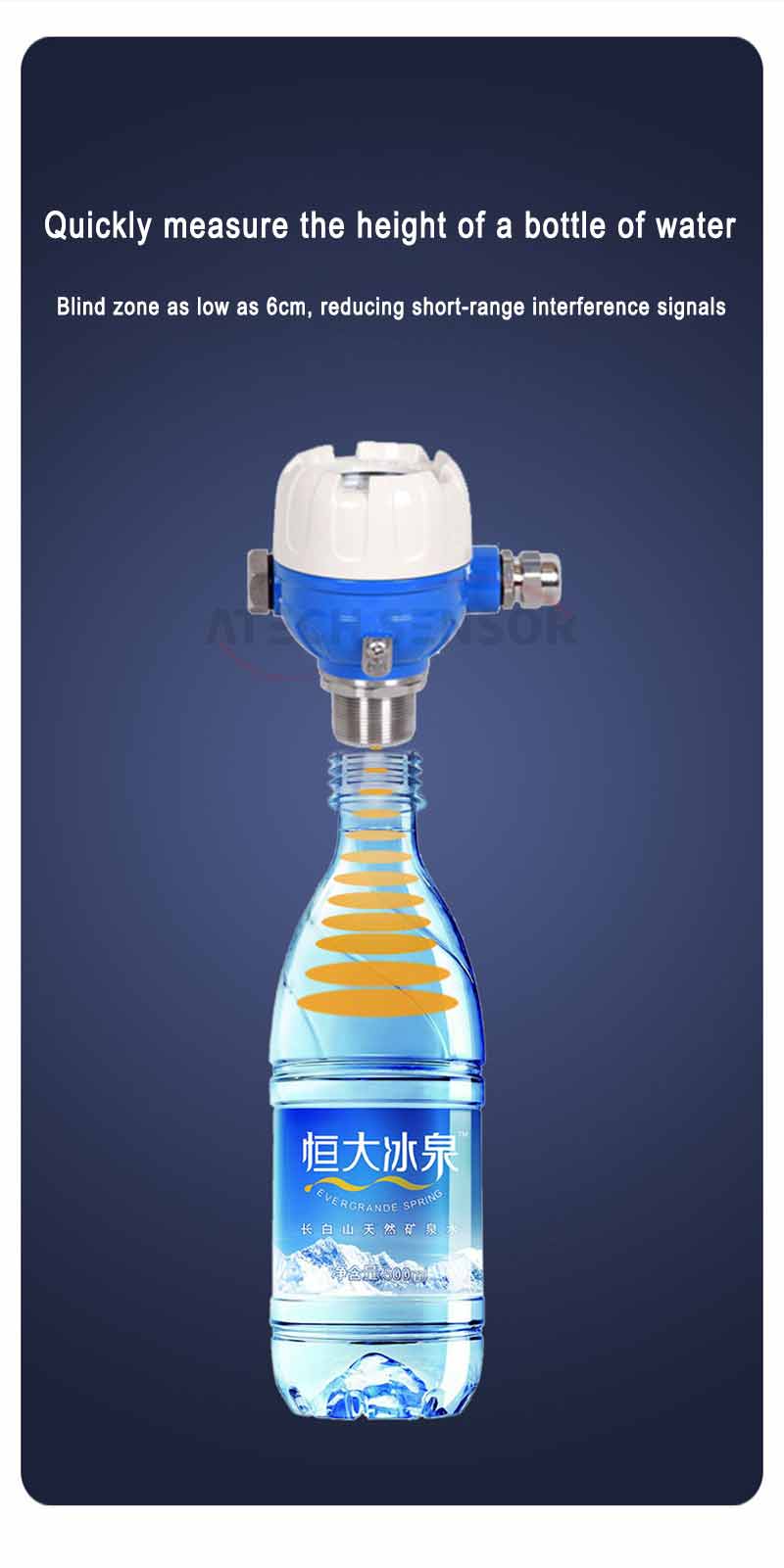

Blind area	≤0.35m
Minimum display resolution	1mm or 0.1%FS (the maximum value)
Display	2-inch black and white LCD display, resolution 128*64
Transmitter output	(4~20)mA can be set to the corresponding level/distance measurement range, maximum load 500Ω, output accuracy 0.2%FS
Relay output	2-way normally open contacts with independently settable high/low points (Hi/Lo), contact capacity 250VAC 3AMax. (optional)
Communication output	Isolated, RS485, Modbus-RTU communication protocol (optional)
Working environment temperature	20ºC~60ºC
Storage environment temperature	-20ºC~70ºC
Protection level	IP65
Relative humidity	(10~85)% (no condensation)
Language	Chinese/English
