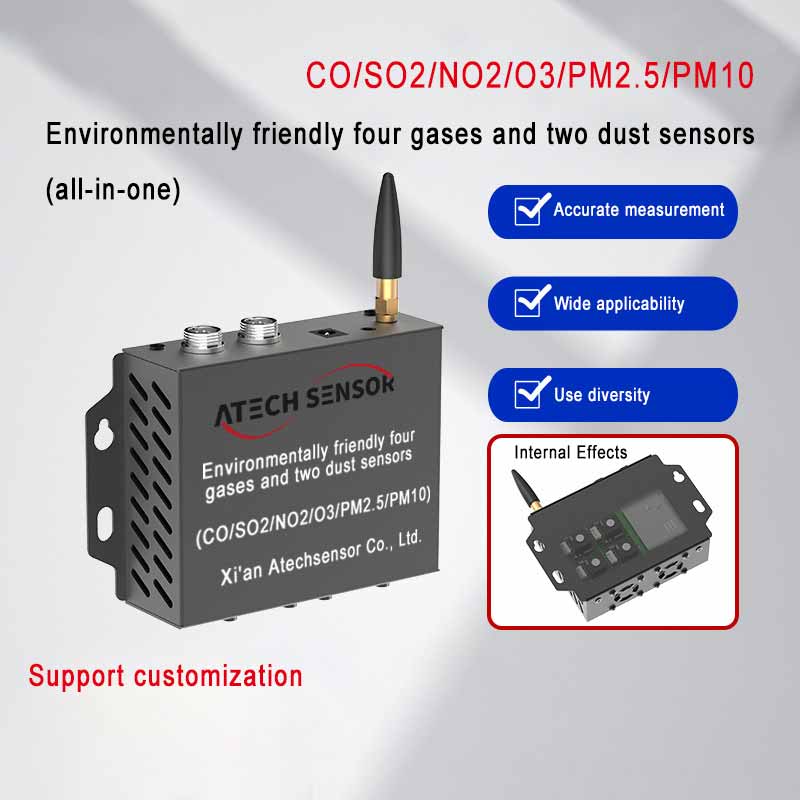

High-precision industrial-grade air quality detection integrated four-gas and two-dust sensor



The gas sensor uses a three-electrode electrochemical sensor and a high-performance microprocessor, with a built-in temperature sensor for temperature compensation. It can accurately measure the gas concentration in the environment, perfectly combining the electrochemical sensor and the transmission circuit to meet customers' gas concentration measurement needs.

The dust sensor uses the principle of laser scattering to detect dust particles in the air. The minimum particle size that can be detected is 1.0 micron, with good consistency and stability.



● High precision, strong stability

● Wide application, diverse applicability

● Integrated design, easy installation

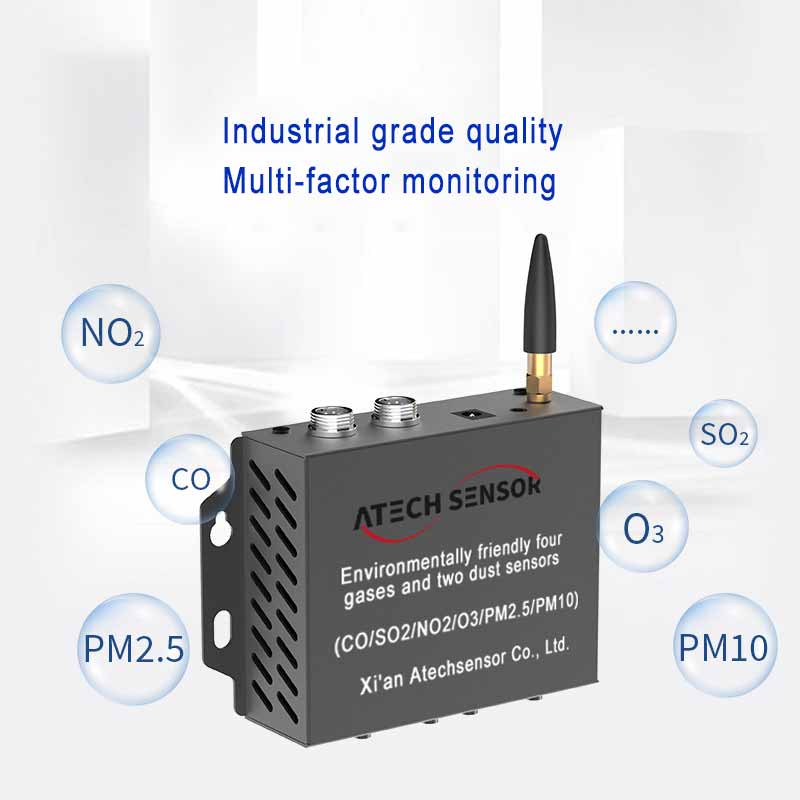

● Four gases and two dust detections

● High integration, no moving parts, zero wear





PM10	Measuring range: 0~2000μg/m3
PM2.5	Measuring range: 0~1000ug/m3
CO	Measuring range: 0~10ppm; Resolution: 0.01ppm
O3	Measuring range: 0~5ppm; Resolution: 0.01ppm
NO2	Measuring range: 0~5ppm; Resolution: 0.01ppm
SO2	Measuring range: 0~5ppm; Resolution: 0.01ppm
Temperature	Measuring range: -20~60℃, Resolution: 0.1℃
Humidity	Measuring range 0-100%RH, Resolution 0.1%RH
Work Environment	Temperature: -30~60℃ Humidity: 0~95%RH
