Products Description

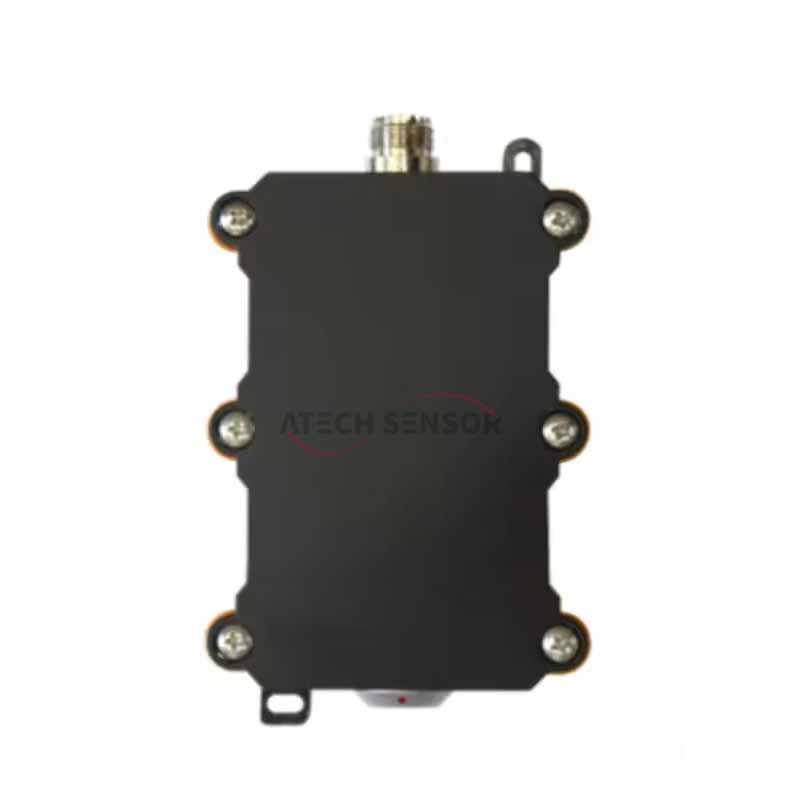

AIRCS-01 wireless remote control receiver is used for remote control of mechanical equipment. It adopts 433/470/868/915MHz encrypted wireless communication technology, with a transmission range of up to 1 km and supports transmitter channel synchronization.

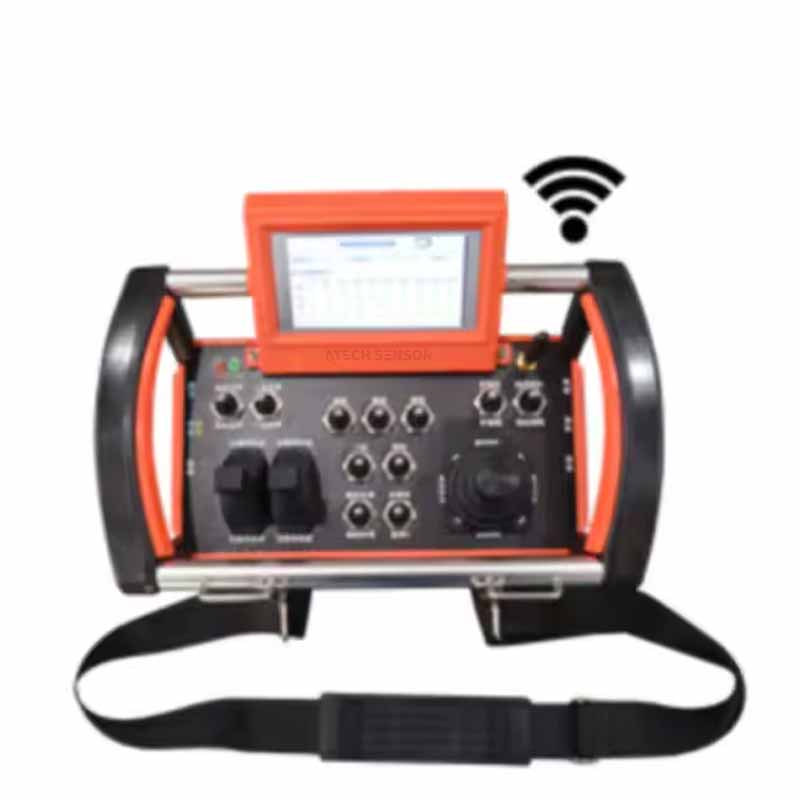

The AIRCS-01 receiver pairs with the AIRCS-01 transmitter to form a wireless remote control system capable of converting panel switch/joystick states into RS485/CAN bus signals for transmission to the user's controller.
AIRCS-01 industrial remote control can be applied to various mechanical operating systems such as coal mining machines, tunneling machines, drilling rigs, truck cranes, vehicle-mounted pumps, vehicle-mounted cranes, crawler cranes, building tower cranes, excavators, bulldozers, rotary drilling rigs, aerial work vehicles, fire cannons, coal mining machines, sandblasting machines, automatic doors, etc.
Product Features
● Synchronous transmission channel
● Supports configuration parameters via RS485
● Supports MCU program upgrade via RS485
● Waterproof plastic housing
● Long distance transmission
Product Specification
| Name | Content | Note |
| Frequency range | 433/470/868/915MHz | Configurable |
| Power supply | 10-30VDC | |
| Antenna | External suction cup antenna | The feeder length defaults to 2m |
| Operating temperature | -40°C to 85°C | |
| Transmission distance | 500m~1Km | No obstruction distance |
| Housing material | Flame retardant nylon housing | |
| Weight | Approx. 800g | |
| Protection | IP65 | |
| Size | 118X90X48 | mm |
| Connection | 2K 6-pin aviation plug | The plug comes with a 6-core shielded twistedpair cable, with a default length of 2 meters. |

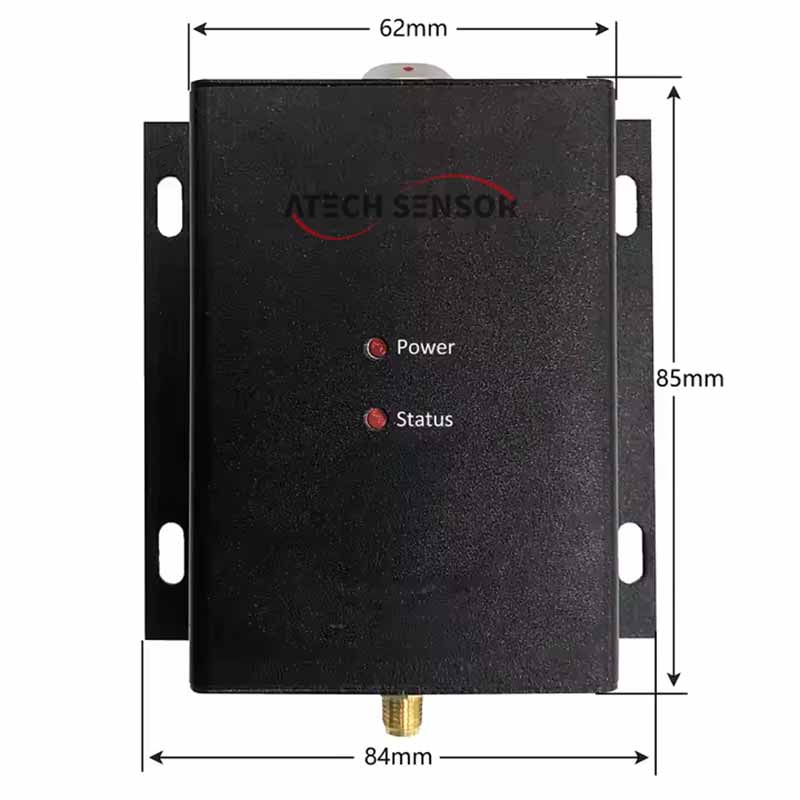

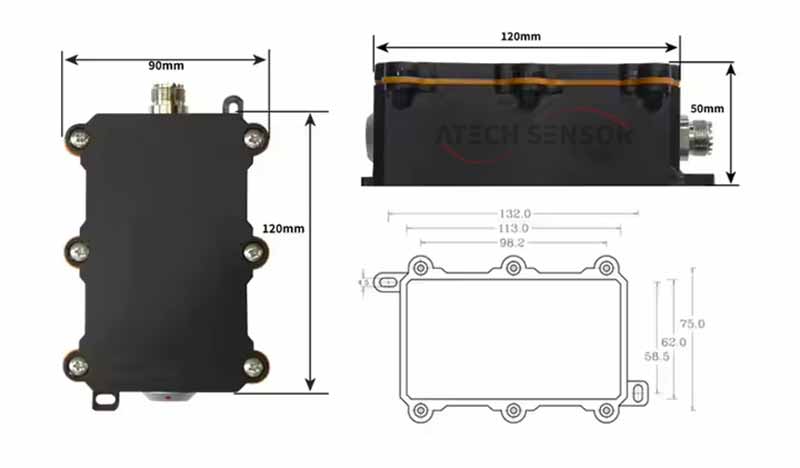

Product Dimensions
Product Features
● Synchronous transmission channel
● Supports configuration parameters via RS485
● Supports MCU program upgrade via RS485
● Waterproof plastic housing
● Long distance transmission
Product Dimensions
Product Specification
| Name | Content | Note |
| Frequency range | 433/470/868/915MHz | Configurable |
| Power supply | 10-30VDC | |
| Antenna | External suction cup antenna | The feeder length defaults to 2m |
| Operating temperature | -40°C to 85°C | |
| Transmission distance | 500m~1Km | No obstruction distance |
| Housing material | Flame retardant nylon housing | |
| Weight | Approx. 800g | |
| Protection | IP65 | |
| Size | 118X90X48 | mm |
| Connection | 2K 6-pin aviation plug | The plug comes with a 6-core shielded twistedpair cable, with a default length of 2 meters. |
