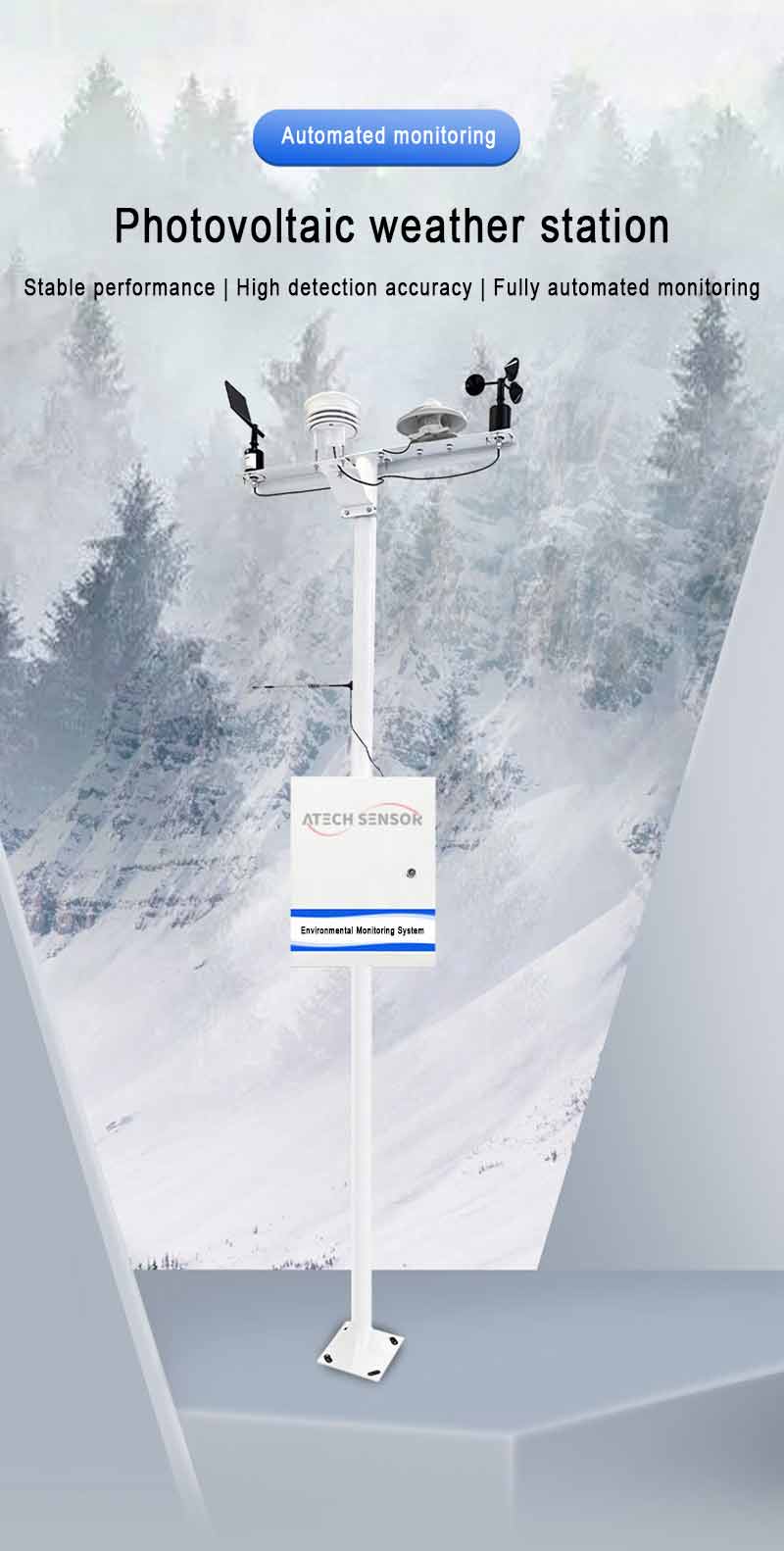

Photovoltaic meteorological station grid-connected solar radiation comprehensive observation station environmental collection photovoltaic power plant monitoring instrument

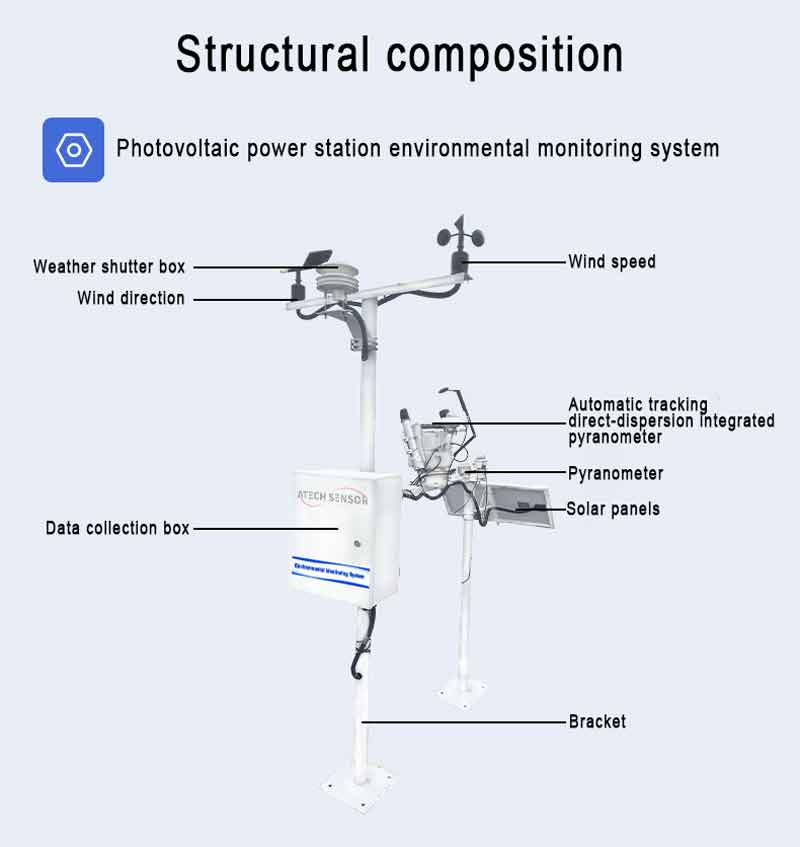

The photovoltaic weather station is an environmental monitoring system specially developed and produced for photovoltaic power stations. The equipment adopts a new integrated structure design, with high measurement accuracy and easy use. It can collect 1-13 elements: including solar radiation (horizontal/inclined), temperature, humidity, wind speed, wind direction, atmospheric pressure, rainfall, backplane temperature and other elements. The elements can be customized as needed.



● Stable performance and high detection accuracy

● Fully automated monitoring, no need for dedicated personnel

● Wide application areas, meeting the requirements of environmental meteorological monitoring, solar radiation monitoring, etc. for photovoltaic power stations

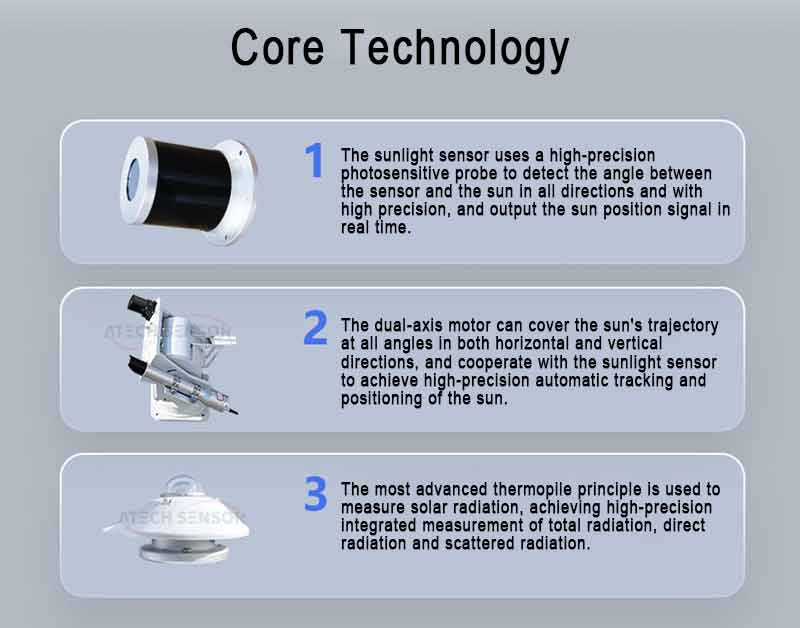

● Dual-axis motor can achieve full horizontal and top-down coverage of the sun angle, high-precision automatic tracking and positioning

● Using advanced thermopile principle measurement

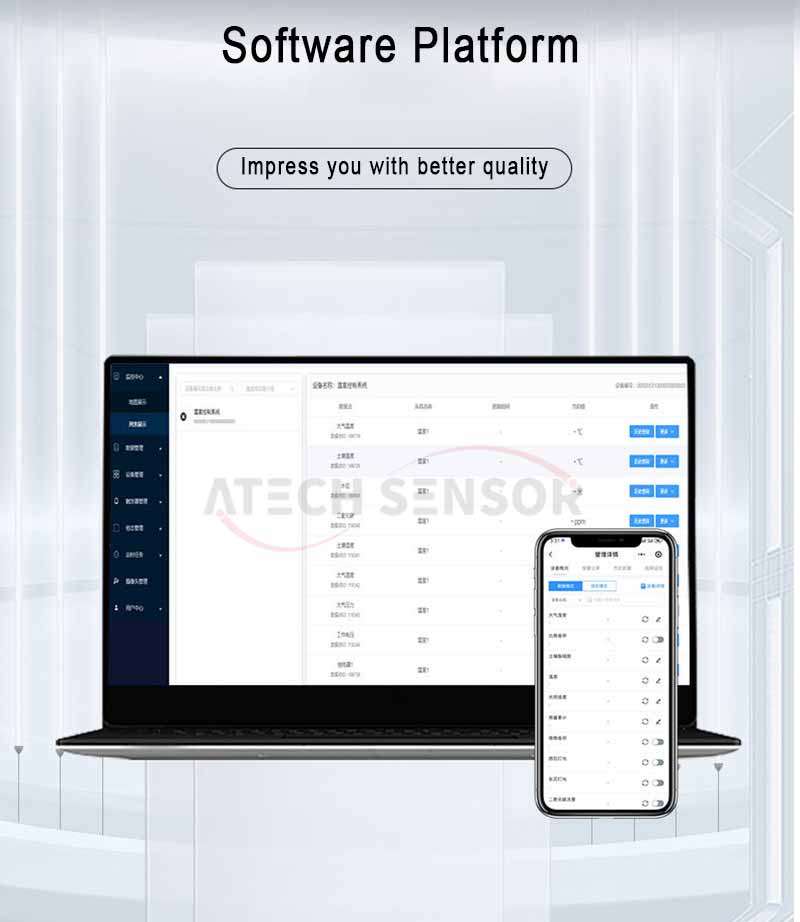

● Free cloud platform, real-time data viewing





Monitoring factors	Measuring range	Measurement accuracy	Resolution
Temperature	-40ºC~50ºC	±0.2ºC	0.1ºC
Humidity	0~100%RH	±3%RH	1%RH
Air pressure	0~1100hPa	±0.3hPa	0.1hPa
Wind speed	0~70m/s	±0.5m/s	0.1m/s
Wind direction	0~360°	±3°	1°
Rainfall	0~999.9mm	±4%	0.3mm
Total radiation	0~2000W/2	±2%	1W/m2
Direct radiation	0~2000W/2	±2%	1W/m2
Scattered radiation	0~2000W/2	±2%	1W/m2
Reflected Radiation	0~2000W/2	±2%	1W/m2
Net radiation	0~2000W/2	±2%	1W/m2
Sunshine hours	0~24h	±0.1h	0.1h
Component temperature	40~150ºC	±0.2ºC	0.1ºC

Supply voltage	DC12-24V/Solar Energy/Mains Power
Operating temperature	-40~80ºC
Operating humidity	0~100%RH

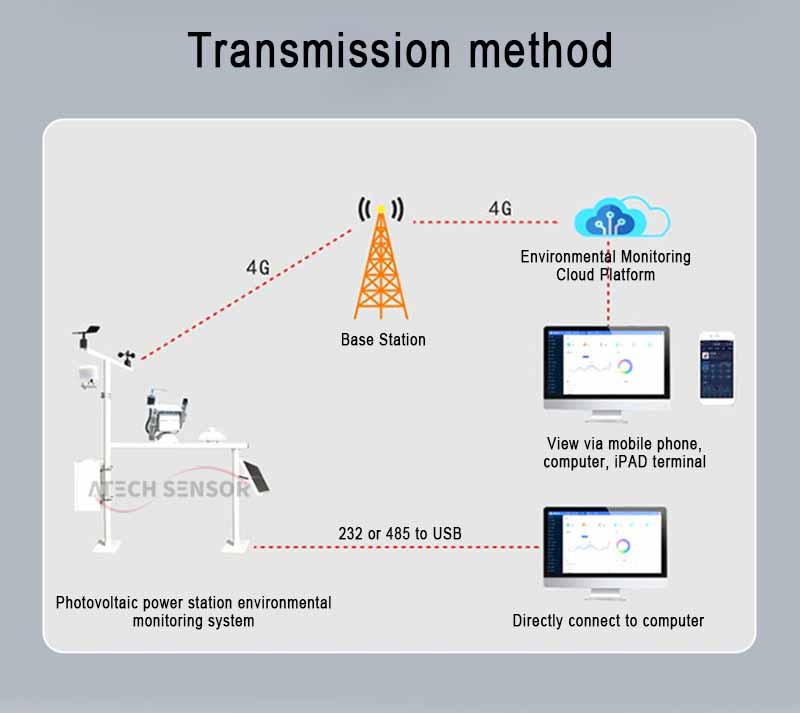

Communication method	RS232/RS485/4G/LORA/NB (optional)
Power consumption	<3W
