Differential Pressure Transmitter for HVAC, 4-20mA, 0.5%



Good price HVAC differential pressure transducer is an integrated differential pressure sensor, equipped with stainless steel material, IP65 protection, 4-20mA output signal. The provided diff pressure transmitter can prevent leakage, interference and impact, suitable for industrial processes to monitor and control variables such as liquid levels, flow rates, and fluid densities.



Integrated differential pressure transmitter

Available in 0.5% high precision grade

Stainless steel

Anti-leakage

anti-interference

anti-impact.





Accuracy Class	0.50%
Stock Thread	M20*1.5
Measuring Range	0~10kPa to 2.5MPa
Output Signal	4-20mA/0-5V/1-5V
Protection Level	IP65
Diaphragm Material	316L Stainless Steel
Power Supply	24V DC
Working Environment Temperature	0-80°C
Resistant to Instant Strikes	150% Range

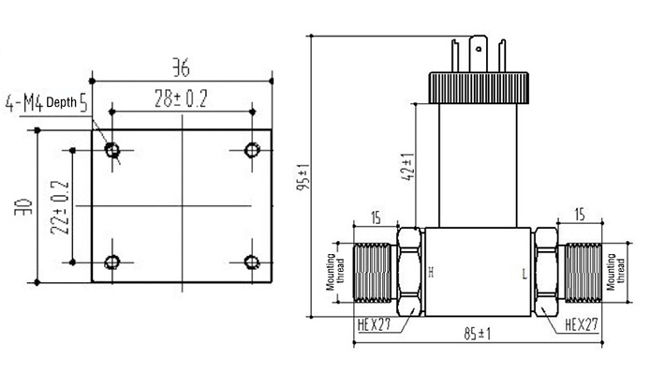

Dimension (Unit: mm)

Wiring

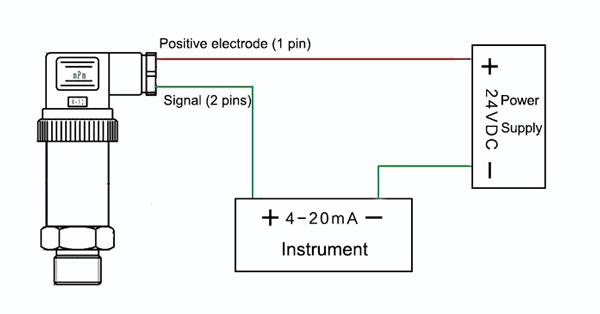

2 Wire Connection Method: Red Wire - 24V DC, Green Wire - Current Output

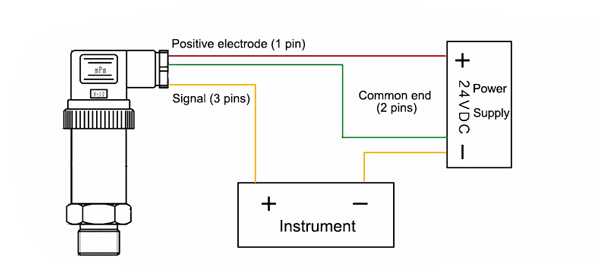

3 Wire Connection Method: Red Wire - 24V DC, Green Wire - Power Supply, Yellow Wire - Voltage Output
