What is a Rain Gauge?
Rainfall is one of the most important sources of fresh water, and monitoring rainfall is crucial for agriculture, hydrology, weather forecasting, and climate research. A rain gauge is a meteorological instrument used to measure the amount of precipitation (usually rainfall) over a specific period of time in a particular area. It is a key tool in weather monitoring, hydrology, and agriculture, providing data for assessing water resources, forecasting floods, and studying climate patterns. Rain gauges primarily collect and measure liquid precipitation, such as rainwater, but sometimes can also measure the melting equivalent of solid precipitation (such as snow).
Based on design and measurement mechanisms, rain gauges can be classified into the following categories:
1. Standard Rain Gauge (Manual Rain Gauge)
Applicable Scenarios: Low cost, easy operation, commonly used in agriculture, education, and amateur meteorological observations. Data needs to be manually read and recorded periodically.
2. Tipping Bucket Rain Gauge
Advantages:
• Continuous data recording, suitable for automatic monitoring.
• Can be connected to data loggers or remote transmission systems.
Limitations:
• May be inaccurate during heavy or very light rainfall.
• Requires regular cleaning and maintenance to prevent clogging.
3. Weighing Rain Gauge
Advantages:
• High precision, can measure various types of precipitation (rain, snow, hail).
• Suitable for scientific research and high-accuracy applications.
Limitations:
• High cost and complex structure.
• Requires regular maintenance.
4. Optical Rain Gauge
Uses optical sensors to detect the interruption of light beams caused by raindrops, providing real-time data with low maintenance requirements.
• Low maintenance, no moving parts, can provide real-time rainfall intensity data.
Limitations:
• May have lower accuracy during heavy rainfall or when small raindrops are present.
• Sensitive to interference from dust, fog, etc.
5. Capacitive or Piezoelectric Rain Drop Sensors (Mainly for Detecting Rain Presence)
Capacitive sensors detect changes in electrical capacitance when raindrops fall on the sensor surface.
Piezoelectric sensors generate an electrical signal from the impact of raindrops.
Working Principle of Rain Gauges
1. Standard Rain Gauge (Manual Rain Gauge)
The standard rain gauge typically consists of a cylindrical container with an open top to collect rainwater. Rainwater flows into a narrower measuring tube through a funnel, with graduated markings on the tube to display the depth of rainfall in millimeters or inches. The narrower tube helps to magnify the measurement, increasing accuracy. The user manually reads and records the water level after a rainfall event, then empties the rain gauge for the next use.
Example: A common 8-inch standard rain gauge with a collection area of 8 inches in diameter. The internal measuring tube is calibrated to accurately measure the depth of rainfall.

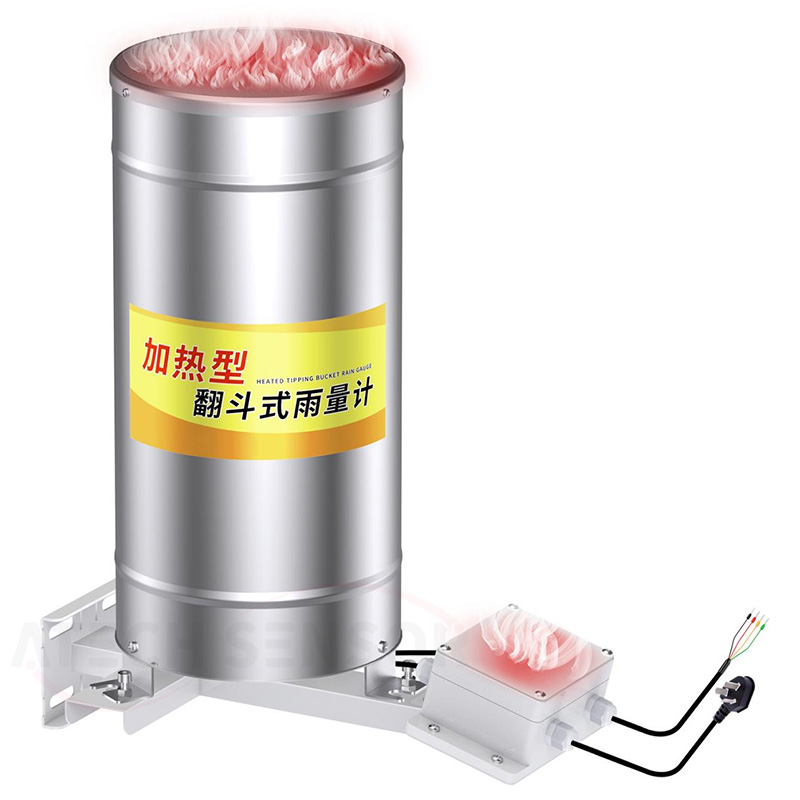

2. Tipping Bucket Rain Gauge
A tipping bucket rain gauge uses a funnel to direct rainwater into a small tipping bucket mechanism. Each bucket has a fixed capacity (e.g., equivalent to 0.2 mm of rainfall). When the bucket fills, it tips over, empties, and triggers a switch to record the event. The tipping of the bucket is counted electronically and converted into the total amount of rainfall.
Advantages: Automated data collection, suitable for continuous monitoring.
Limitations: During heavy rainfall, the bucket may tip too quickly, resulting in water loss and
underestimation.
3. Weighing Rain Gauge
A weighing rain gauge uses a container placed on a high-precision scale to measure the weight of the collected precipitation. By knowing the density of water, the weight is converted into rainfall depth. This type of rain gauge can measure both liquid and solid precipitation (e.g., snow or hail) and typically records data electronically with high precision.
4. Optical Rain Gauge

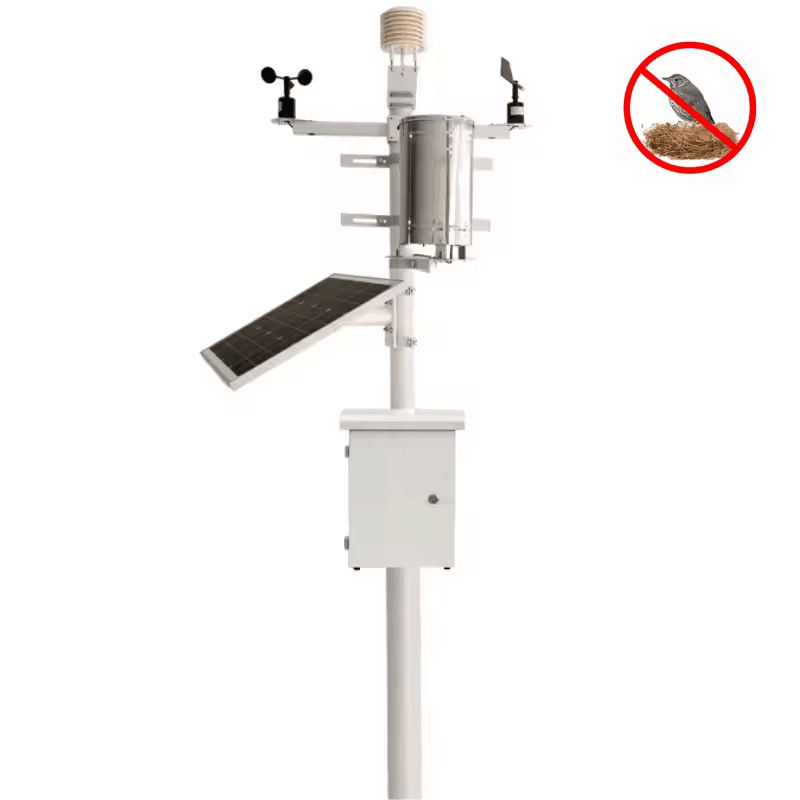

An optical rain gauge uses a light source and sensor to detect raindrops. When a raindrop passes through the light beam, it interrupts the signal, and the device estimates rainfall intensity and volume based on the frequency and size of the interruptions. These rain gauges are commonly used in automatic weather stations.

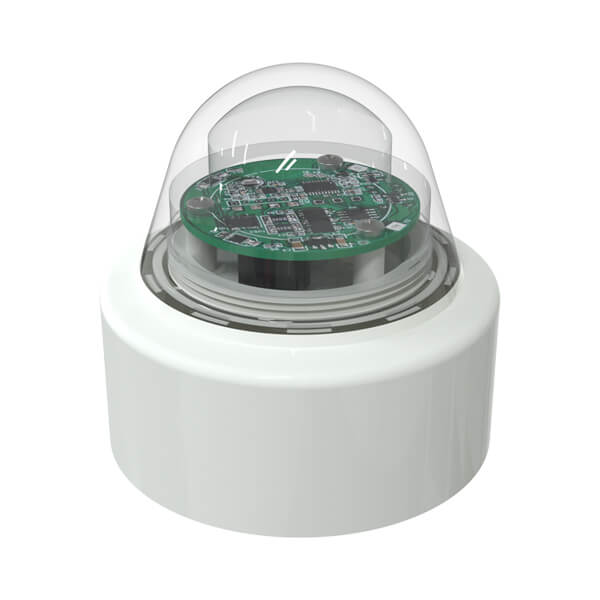

5. Capacitive or Piezoelectric Rain Drop Sensors
These sensors determine whether it is raining based on changes in electrical properties.
Capacitive sensors detect changes in capacitance when raindrops hit the sensor surface.
Piezoelectric sensors generate electrical signals from the impact of raindrops.
Applications and Importance
Rain gauges play a crucial role in weather forecasting, flood monitoring, agricultural planning, and climate research. By providing accurate rainfall data, they help manage water resources, predict natural disasters, and understand long-term climate trends.
