Products Description
Applications
● Industrial process control
● Energy and water treatment
● Drinking water
● Liquid pressure system and switch
● Pipeline pressure testing
Product Features
● MEMS technology
● Imported silicon sensor chip employed
● Perfect long term stability
● CE certificate
● OEM service provided
● Silicon sensor cell employed
Product Specification
pressure medium | gas liquid compatible stainless steel |
pressure ranges | 0~2...1000bar |
overload pressure | 300%FS |
output signal | 4~20mA, 0~5V, 0~10V, 1~5V,0.5-4.5V ,RS485, RS485&4-20mA |
accuracy | 0.5%FS (standard) 0.25%FS 0.1%FS |
load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output) |
long term stability | <0.25%FS/year |
supply voltage | 10~30V |
compensated temperature range | -10~70°c |
operating temperature range | -40~+120°c |
storage temperature range | -40~+140°c |
temperature coefficient of zero | 0.3%FS/10°c |
temperature coefficient of span | 0.3%FS/10°c |
insulation resistance | >100MΩ@ 50VDC |
process connection | G1/4 or others |
electrical connection | DIN 43650 or others |
material of wetted part | 1Cr18Ni9Ti |
material of pressure membrane | 316L |
material of housing | 1Cr18Ni9Ti |
weight | 180g |

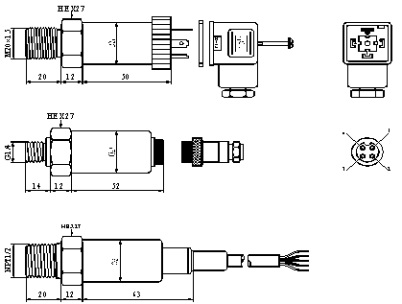

Product Dimensions
Product Features
● MEMS technology
● Imported silicon sensor chip employed
● Perfect long term stability
● CE certificate
● OEM service provided
● Silicon sensor cell employed
Product Dimensions
Product Specification
pressure medium | gas liquid compatible stainless steel |
pressure ranges | 0~2...1000bar |
overload pressure | 300%FS |
output signal | 4~20mA, 0~5V, 0~10V, 1~5V,0.5-4.5V ,RS485, RS485&4-20mA |
accuracy | 0.5%FS (standard) 0.25%FS 0.1%FS |
load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output) |
long term stability | <0.25%FS/year |
supply voltage | 10~30V |
compensated temperature range | -10~70°c |
operating temperature range | -40~+120°c |
storage temperature range | -40~+140°c |
temperature coefficient of zero | 0.3%FS/10°c |
temperature coefficient of span | 0.3%FS/10°c |
insulation resistance | >100MΩ@ 50VDC |
process connection | G1/4 or others |
electrical connection | DIN 43650 or others |
material of wetted part | 1Cr18Ni9Ti |
material of pressure membrane | 316L |
material of housing | 1Cr18Ni9Ti |
weight | 180g |
