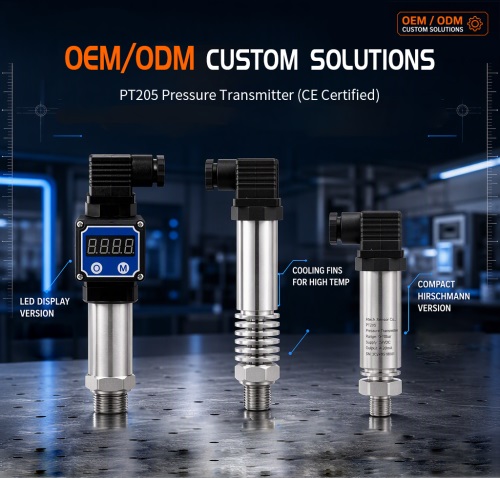

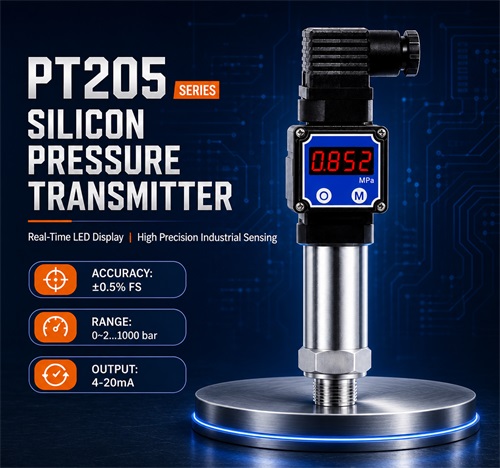

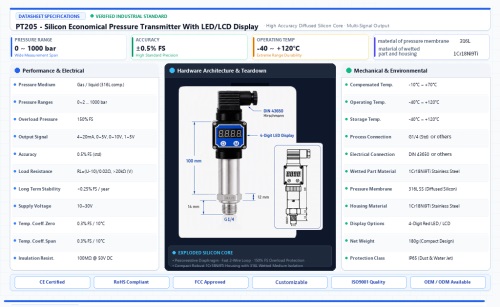

PT205 High-Stability Silicon Pressure Transmitter with LED Display & Multi-Signal Output

 pressure medium

 gas liquid compatible stainless steel

 pressure ranges

 0~2...1000bar

 overload pressure

 150%FS

 output signal

 4~20mA, 0~5V, 0~10V, 1~5V

 accuracy

 0.5%FS (standard)

 load resistance

 RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output)

 long term stability

 <0.25%FS/year

 supply voltage

 10~30V

 compensated temperature range

 -10~70°c

 operating temperature range

 -40~+120°c

 storage temperature range

 -40~+120°c

 temperature coefficient of zero

 0.3%FS/10°c

 temperature coefficient of span

 0.3%FS/10°c

 insulation resistance

 100MΩ@ 50VDC

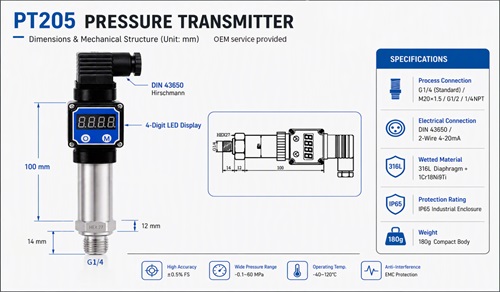

 process connection

 G1/4 or others

 electrical connection

 DIN 43650 or others

 material of wetted part

 1Cr18Ni9Ti

 material of pressure membrane

 316L

 material of housing

 1Cr18Ni9Ti

 weight

180g
