Digital Pressure Sensor, Pressure Transmitter, 24VDC 0‑1.6Mpa 0.5% FS Digital Display Transducer, 4‑20mA, Pressure & Vacuum

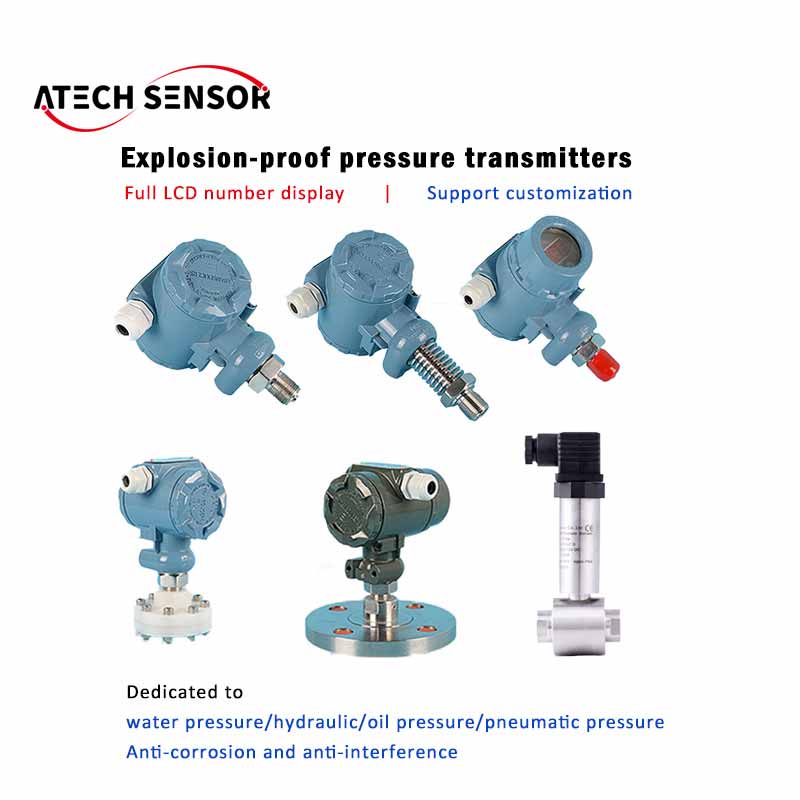

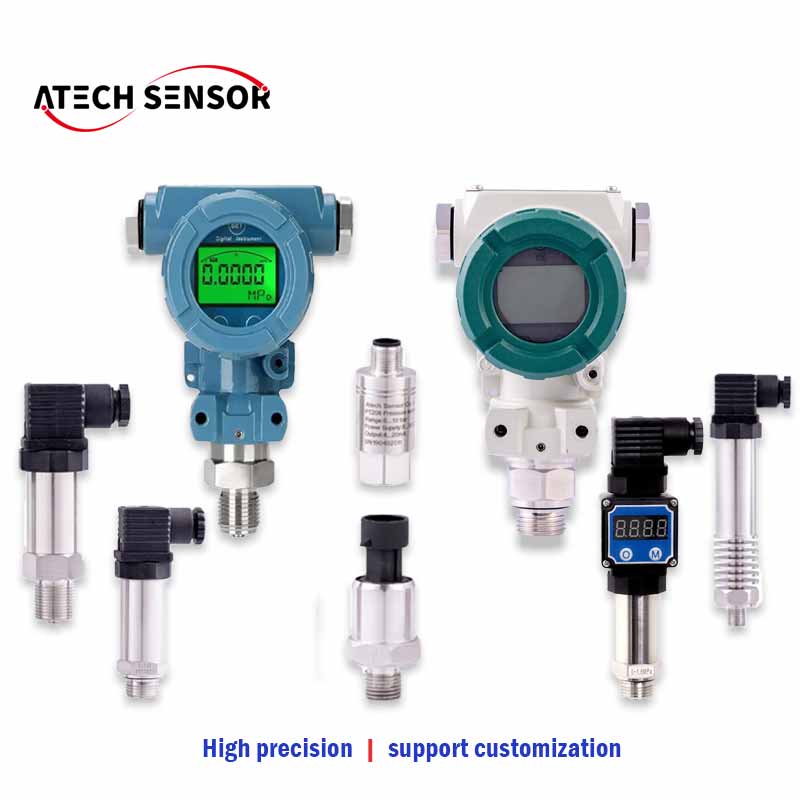

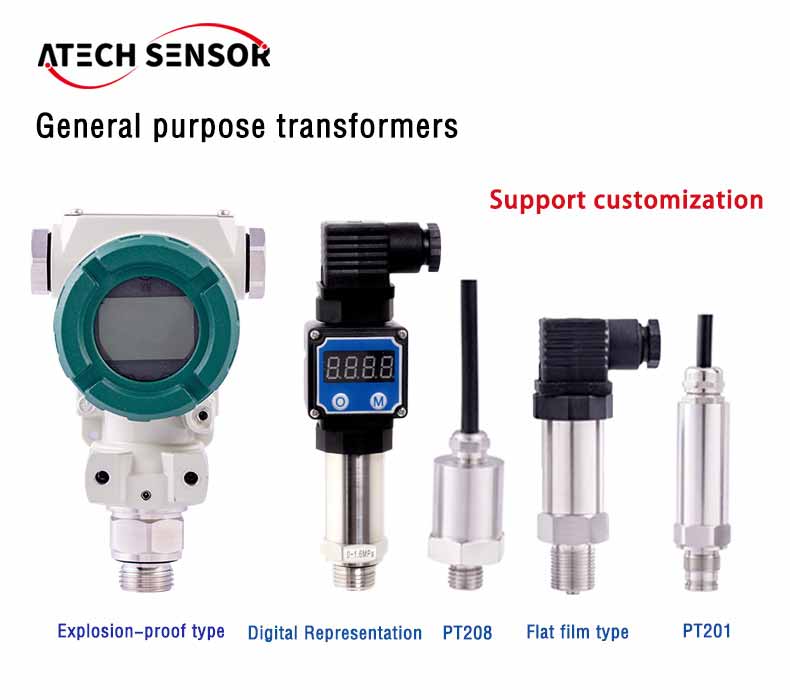

This series of pressure transmitters is a standard and most popular transmitter for measuring air and liquid pressure with LED/LCD display.

The product is made of stainless steel. The pressure sensing element chip is selected from internationally renowned brands. The special circuit allows for easy adjustment of zero and full scale. The product is CE certified, intrinsically safe and explosion-proof. Customized structure and output format can be designed according to special application requirements.



●Work: Pressure Transmitter has high pressure to ensures no leakage, suits perfectly for various high pressure works

●Better Design: Pressure Transmitter enables easier data reading and measuring, works stably under 24V DC, the output is 4~20mA

●Easy to Install: Pressure Transmitter is light in weight and compact in size, the convenient installation can be quickly completed within minutes

●Great Housing: Pressure Transmitter adopts high strength stainless steel housing, the anti interference pressure sensor has great durability

●High Accuracy: Pressure Transmitter has 0~1.6Mpa wide measuring range as well as 0.5%FS high accuracy, very practical





pressure medium	gas liquid compatible stainless steel
pressure ranges	0~2...1000bar
overload pressure	150%FS
output signal	4~20mA, 0~5V, 0~10V, 1~5V
accuracy	0.5%FS (standard)
load resistance	RL = (U-10)/0.02(Ω) (4~20mA current output), >20KΩ (voltage output)
long term stability	<0.25%FS/year
supply voltage	10~30V
compensated temperature range	-10~70°c
operating temperature range	-40~+120°c
storage temperature range	-40~+120°c
temperature coefficient of zero	0.3%FS/10°c
temperature coefficient of span	0.3%FS/10°c
insulation resistance	100MΩ@ 50VDC
process connection	G1/4 or others
electrical connection	DIN 43650 or others
material of wetted part	1Cr18Ni9Ti
material of pressure membrane	316L
material of housing	1Cr18Ni9Ti
weight	180g
