Products Description

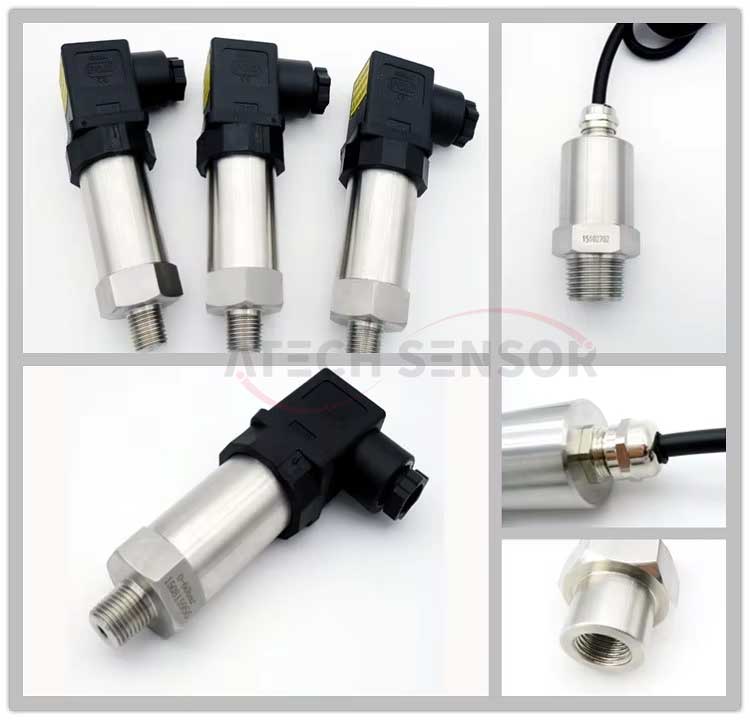

PT213 high temperature pressure sensor piezoelectric sensor for automobile engine
PT213 high temperature pressure sensor piezoelectric sensor for automobile engine use Sputtered film technogy to test liquid and air pressure .
PT213 high temperature pressure sensor piezoelectric sensor for automobile engine is fully welded with intrinsic safety and explosive-proof futures, so can by applied in harsh industrial environments with high level of shock and vibration.
High accuracy and stable performance got very good feed back from customer.

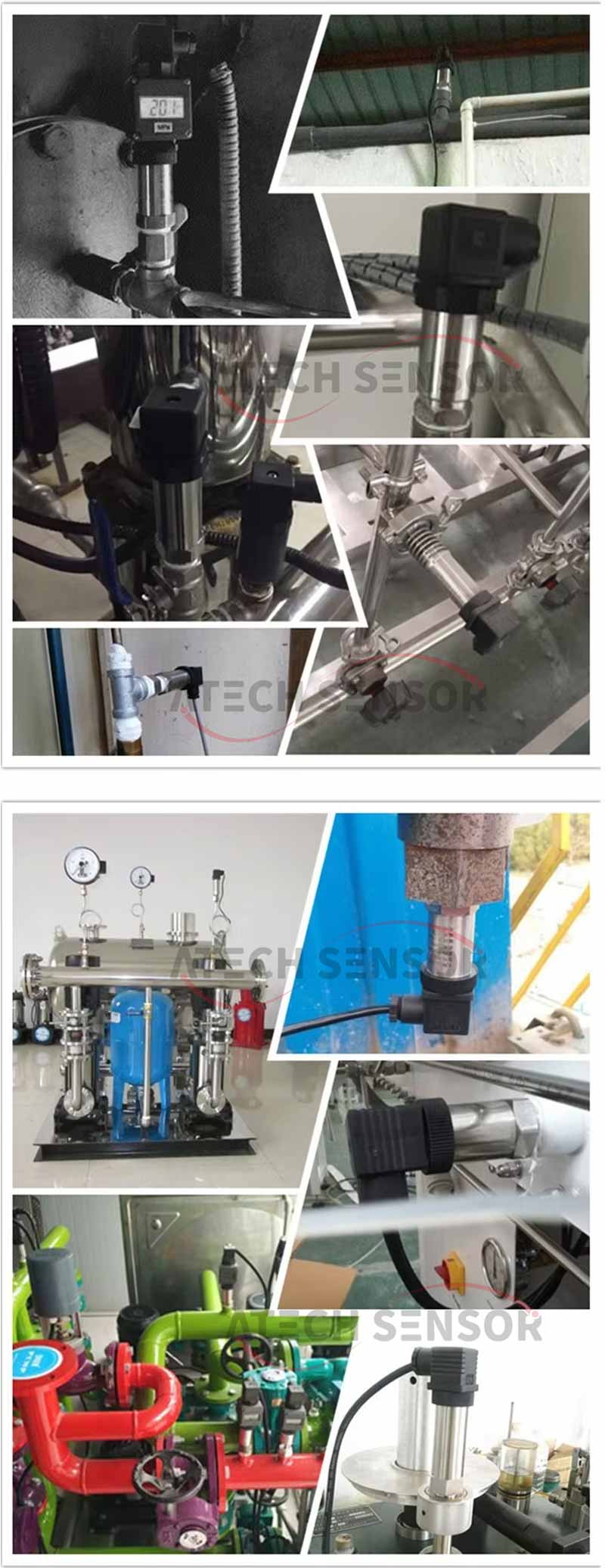

Applications of PT213 high temperature pressure sensor for automobile engine
1.Pumps
2.Automobile engine
3.Industrial boiler pressure test
4.Gas storage device
5.Hydraulic pressure test
Product Features
● Sputtering film pressure cell
● Fully weld
● Intrinsic safety, explosive-proof
● CE certificate
● Stable
Product Specification
pressure medium | gas liquid compatible stainless steel |
pressure ranges | 0~50bar...2200bar high temperature pressure sensor |
overload pressure | 200%FS (2X) high temperature pressure sensor |
burst pressure | 10 times ( 50bar to 800bar ), 6 times ( 900bar to 1600bar ), 4times ( 1600bar to 2200bar) of piezoelectric pressure sensor |
output signal | 4~20mA, 0.5~4.5V, 1~5V piezoelectric pressure sensor |
accuracy | 0.5%FS of piezoelectric pressure sensor |
load resistance | RL = (U-10)/0.02(ohm) (4~20mA current output), >20Kohm (voltage output) |
long term stability | 0.25%FS/year of high temperature pressure sensor |
supply voltage | 12~30V high temperature pressure sensor |
compensated temperature range | -20~120°c pressure sensor for gas |
operating temperature range | -50~+150°c piezoelectric pressure sensor |
storage temperature range | -50~+170°c of piezoelectric pressure sensor |
temperature coefficient of zero | 0.3%FS/10°c of high temperature pressure sensor |
temperature coefficient of span | 0.3%FS/10°c of pressure sensor for gas |
insulation resistance | >100MΩ@ 50VDC of piezoelectric pressure sensor |
process connection | G1/4 or others you can OEM |
electrical connection | DIN 43650 or others you can OEM |
material of wetted part | 1Cr18Ni9Ti of piezoelectric pressure sensor |
Elect strength | 500V@60 second of high temperature pressure sensor |
material of housing | 1Cr18Ni9Ti of piezoelectric pressure sensor |
weight | 180g of PT213 high temperature piezoelectric pressure sensor |

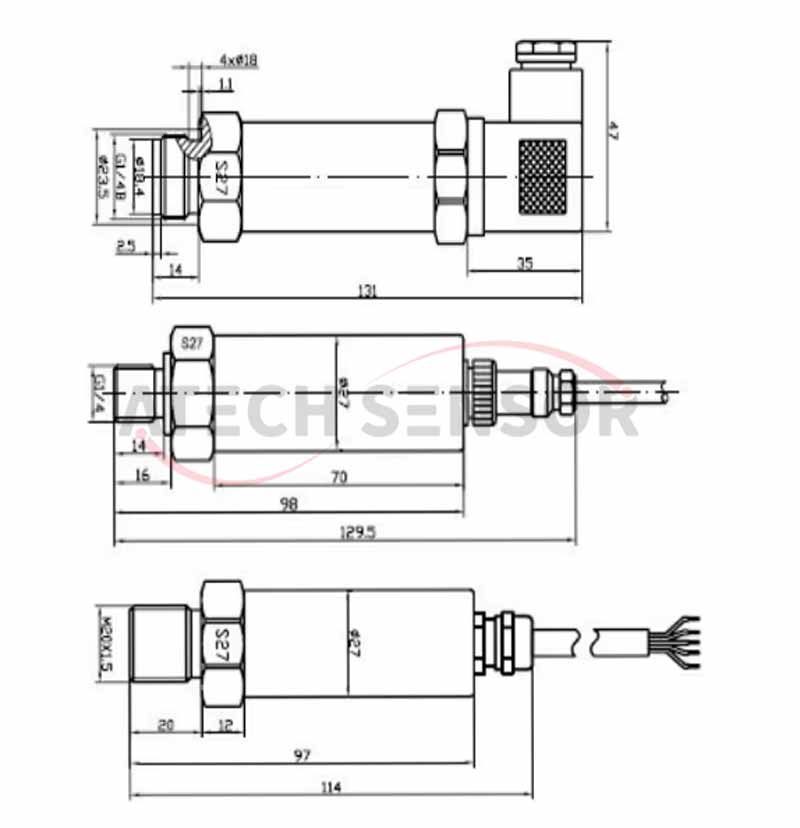

Product Dimensions
Product Features
● Sputtering film pressure cell
● Fully weld
● Intrinsic safety, explosive-proof
● CE certificate
● Stable
Product Dimensions
Product Specification
pressure medium | gas liquid compatible stainless steel |
pressure ranges | 0~50bar...2200bar high temperature pressure sensor |
overload pressure | 200%FS (2X) high temperature pressure sensor |
burst pressure | 10 times ( 50bar to 800bar ), 6 times ( 900bar to 1600bar ), 4times ( 1600bar to 2200bar) of piezoelectric pressure sensor |
output signal | 4~20mA, 0.5~4.5V, 1~5V piezoelectric pressure sensor |
accuracy | 0.5%FS of piezoelectric pressure sensor |
load resistance | RL = (U-10)/0.02(ohm) (4~20mA current output), >20Kohm (voltage output) |
long term stability | 0.25%FS/year of high temperature pressure sensor |
supply voltage | 12~30V high temperature pressure sensor |
compensated temperature range | -20~120°c pressure sensor for gas |
operating temperature range | -50~+150°c piezoelectric pressure sensor |
storage temperature range | -50~+170°c of piezoelectric pressure sensor |
temperature coefficient of zero | 0.3%FS/10°c of high temperature pressure sensor |
temperature coefficient of span | 0.3%FS/10°c of pressure sensor for gas |
insulation resistance | >100MΩ@ 50VDC of piezoelectric pressure sensor |
process connection | G1/4 or others you can OEM |
electrical connection | DIN 43650 or others you can OEM |
material of wetted part | 1Cr18Ni9Ti of piezoelectric pressure sensor |
Elect strength | 500V@60 second of high temperature pressure sensor |
material of housing | 1Cr18Ni9Ti of piezoelectric pressure sensor |
weight | 180g of PT213 high temperature piezoelectric pressure sensor |
