Products Description

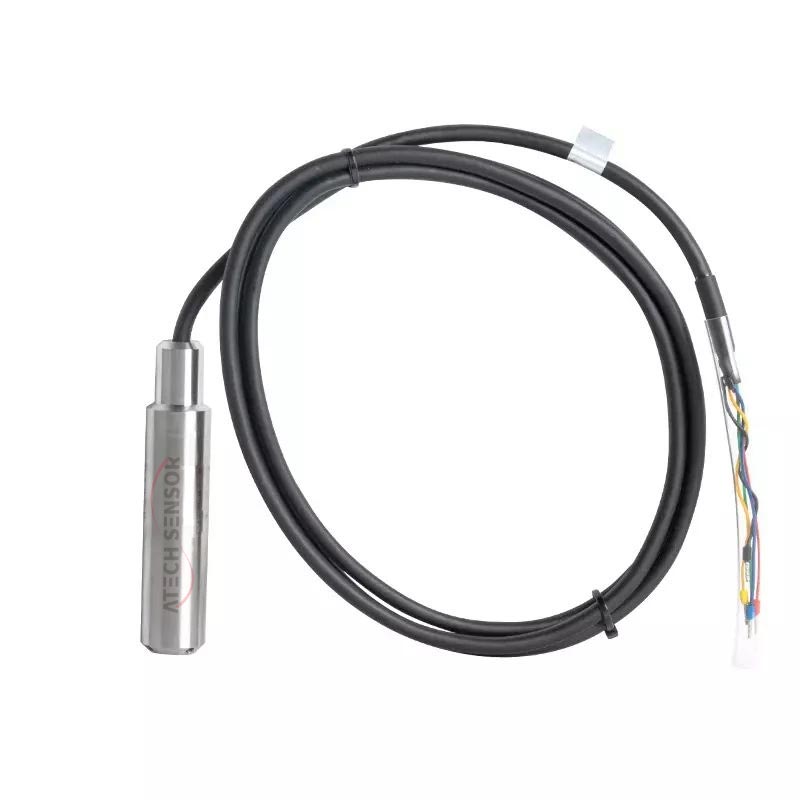

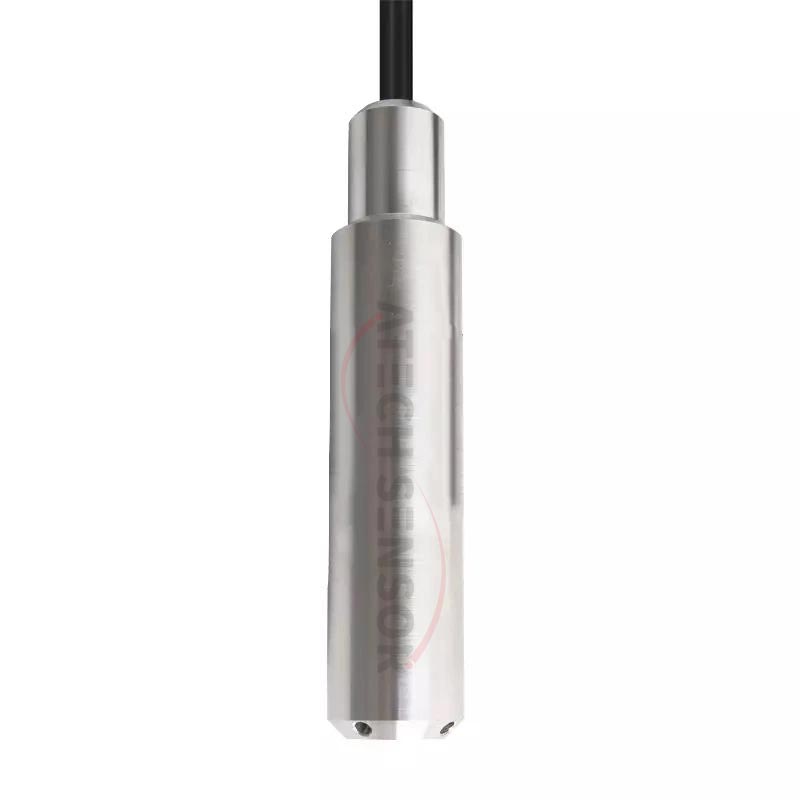

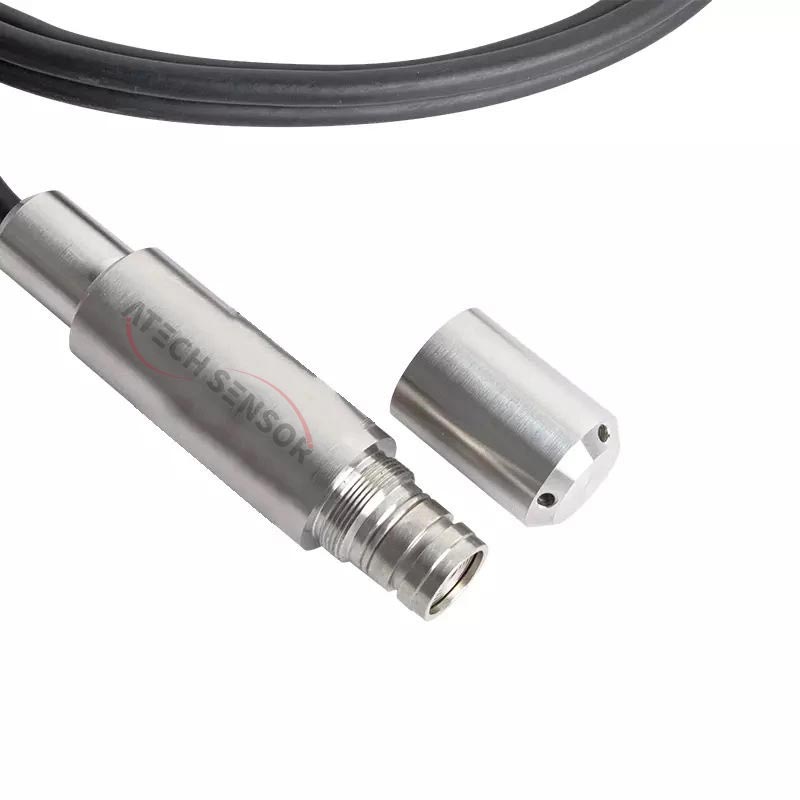

AFLSS-17 Submersible level and temperature meter are completely sealed for submersion in liquid, for continuous level and temperature measurement in water level, well depth, groundwater level and so on.
Product Features
● Good stability and accuracy
● Can be directly placed in the measured medium, very convenient to install and use.
●. Solid structure, no moving parts, high reliability, long service life, high-precision measurement from water, oil to high-viscosity paste, not affected by the foaming, deposition and electrical characteristics of the measured medium, wide range of temperature compensation.
● With reverse polarity protection and overload current limiting protection.
Product Specification
| Product | Level and temperature meter |
| Measuring range | Level: (0...100)m Temperature: (0...50)ºC |
| Accuracy | Temperature: 1.5%FS Level: 0.5%FS |
| Compensated temperature | 0...50ºC |
| Output signal | RS485/4~20mA/0~5V/1~5V |
| Medium temperature | -20...65ºC |
| Power supply | 12...30VDC |
| Ingress Protection | IP68 |
Product Dimensions
Product Features
● Good stability and accuracy
● Can be directly placed in the measured medium, very convenient to install and use.
●. Solid structure, no moving parts, high reliability, long service life, high-precision measurement from water, oil to high-viscosity paste, not affected by the foaming, deposition and electrical characteristics of the measured medium, wide range of temperature compensation.
● With reverse polarity protection and overload current limiting protection.
Product Dimensions
Product Specification
| Product | Level and temperature meter |
| Measuring range | Level: (0...100)m Temperature: (0...50)ºC |
| Accuracy | Temperature: 1.5%FS Level: 0.5%FS |
| Compensated temperature | 0...50ºC |
| Output signal | RS485/4~20mA/0~5V/1~5V |
| Medium temperature | -20...65ºC |
| Power supply | 12...30VDC |
| Ingress Protection | IP68 |
