High temperature pressure sensor is a kind of pressure sensor specially used for pressure measurement of high temperature medium.
Most pressure sensors can measure media at 85°C~125°C. High-temperature pressure sensors can measure high-temperature media up to 300°C, 500°C, 650°C, 800°C, and even 850°C. Such as steam, high temperature air, high temperature exhaust gas, high temperature liquid, high temperature oil, etc.
4-20mA, 0-5 / 1-5 / 0-10V and other output signals are optional. A 4-digit local digital display is also optional.
Product Features
●316L stainless steel isolation diaphragm structure, good corrosion resistance
●High temperature chip
●Strong anti-interference, good long-term stability
●Direct contact with high-temperature media to improve pressure response frequency
●Provide low pressure, medium pressure, high pressure rich pressure range
●The sensor and pressure interface are all welded structures, and the enclosure protection level is IP65
●Suitable for pressure measurement of high temperature, low temperature and normal temperature media.
●Anti-shock, anti-vibration, anti-corrosion
●Applicable medium temperature range is wide
Product Specification
| Range: | 0～1KPa～10KPa～400KPa, -0.1 ～ 0 ～ 1 ～ 60 (MPa), 0 ～ 10KPa ~ 160MPa |
| Comprehensive accuracy: | 0.5% FS |
| Output signal: | 4-20mA (2-wire system), 0-5 / 1-5 / 0-10V (3-wire system), Other customized output signals. |
| Power supply voltage: | 24DCV (9 ～ 36DCV) |
| Medium temperature: | -30 ℃~160℃~350 ℃, customized up to -200℃~850 ℃. |
| Ambient temperature: | Normal temperature (-20 ～ 85 ℃) |
| Load resistance: | Current output type: maximum 800Ω; voltage output type: greater than 50KΩ |
| Insulation resistance: | Greater than 2000MΩ (100VDC) |
| Long-term stability: | 0.2% FS / year |
| Vibration effect: | In the mechanical vibration frequency 20Hz ～ 1000Hz, the output change is less than 0.1% FS |
| Electrical interface: | Hessman connector (customizable) |
| Thread connection: | M20 × 1.5, etc. Other threads can be designed according to customer requirements |
| Dimensions: | M20 × Φ26.5 × 156 or customized size |
| Shell protection: | Plug type (IP65); cable type (IP67) |
| Safety explosion-proof: | Ex iaⅡ CT5; EX is IIC T6 Ga |

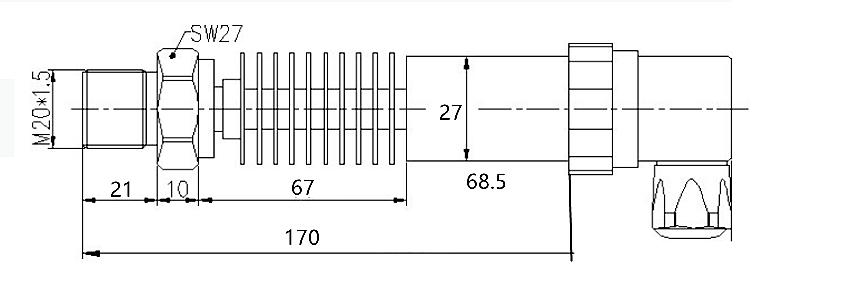

Product Dimensions
Order Guide
| ATECH | High Temperature Pressure Sensor |
| Code | Range |
| (0~X)KPa | -100kPa…0-0.01…60MPa |
| Code | Output Signal |
| B1 | 4-20mA |
| B2 | 0-10mA |
| B3 | 0-10V |
| B4 | 0-5V |
| B5 | 1-5V |
| B6 | customize |
| Code | Process Connection |
| P1 | M20*1.5 |
| P3 | G1/4 |
| P4 | G1/2 |
| P0 | Customize |
| Code | Electrical connections |
| C1 | Hirschman joint |
| C2 | cable output |
| Code | Additional functions |
| G | Gauge pressure (default) |
| A | Absolute pressure |
| S | Sealed gauge pressure |
| V1 | Power supply 24VDC |
| V5 | Power supply 12VDC |
| D | Digital Display |
| Code | Temperature Range |
| XX ℃ | -30 ℃~160℃~350 ℃, customized up to -200℃~ 850 ℃. |
Product Features
●316L stainless steel isolation diaphragm structure, good corrosion resistance
●High temperature chip
●Strong anti-interference, good long-term stability
●Direct contact with high-temperature media to improve pressure response frequency
●Provide low pressure, medium pressure, high pressure rich pressure range
●The sensor and pressure interface are all welded structures, and the enclosure protection level is IP65
●Suitable for pressure measurement of high temperature, low temperature and normal temperature media.
●Anti-shock, anti-vibration, anti-corrosion
●Applicable medium temperature range is wide
Product Dimensions
Order Guide
| ATECH | High Temperature Pressure Sensor |
| Code | Range |
| (0~X)KPa | -100kPa…0-0.01…60MPa |
| Code | Output Signal |
| B1 | 4-20mA |
| B2 | 0-10mA |
| B3 | 0-10V |
| B4 | 0-5V |
| B5 | 1-5V |
| B6 | customize |
| Code | Process Connection |
| P1 | M20*1.5 |
| P3 | G1/4 |
| P4 | G1/2 |
| P0 | Customize |
| Code | Electrical connections |
| C1 | Hirschman joint |
| C2 | cable output |
| Code | Additional functions |
| G | Gauge pressure (default) |
| A | Absolute pressure |
| S | Sealed gauge pressure |
| V1 | Power supply 24VDC |
| V5 | Power supply 12VDC |
| D | Digital Display |
| Code | Temperature Range |
| XX ℃ | -30 ℃~160℃~350 ℃, customized up to -200℃~ 850 ℃. |
Product Specification
| Range: | 0～1KPa～10KPa～400KPa, -0.1 ～ 0 ～ 1 ～ 60 (MPa), 0 ～ 10KPa ~ 160MPa |
| Comprehensive accuracy: | 0.5% FS |
| Output signal: | 4-20mA (2-wire system), 0-5 / 1-5 / 0-10V (3-wire system), Other customized output signals. |
| Power supply voltage: | 24DCV (9 ～ 36DCV) |
| Medium temperature: | -30 ℃~160℃~350 ℃, customized up to -200℃~850 ℃. |
| Ambient temperature: | Normal temperature (-20 ～ 85 ℃) |
| Load resistance: | Current output type: maximum 800Ω; voltage output type: greater than 50KΩ |
| Insulation resistance: | Greater than 2000MΩ (100VDC) |
| Long-term stability: | 0.2% FS / year |
| Vibration effect: | In the mechanical vibration frequency 20Hz ～ 1000Hz, the output change is less than 0.1% FS |
| Electrical interface: | Hessman connector (customizable) |
| Thread connection: | M20 × 1.5, etc. Other threads can be designed according to customer requirements |
| Dimensions: | M20 × Φ26.5 × 156 or customized size |
| Shell protection: | Plug type (IP65); cable type (IP67) |
| Safety explosion-proof: | Ex iaⅡ CT5; EX is IIC T6 Ga |
